Specifications

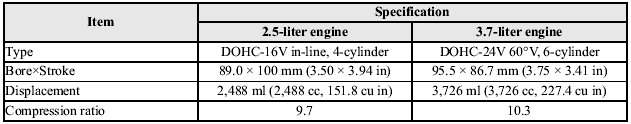

Engine

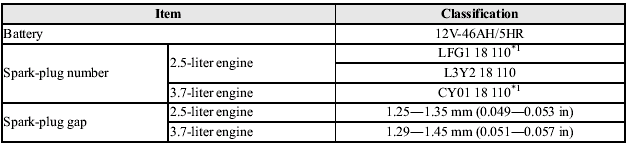

Electrical System


Electrical System

*1 ex factory


*1 ex factory

CAUTION:
When cleaning the iridium plugs, do not use a wire brush.

(2.5-liter engine) The fine particulate coating on the iridium alloy and platinum tips
could be damaged.

(3.7-liter engine) The fine particulate coating on the platinum alloy could be damaged.

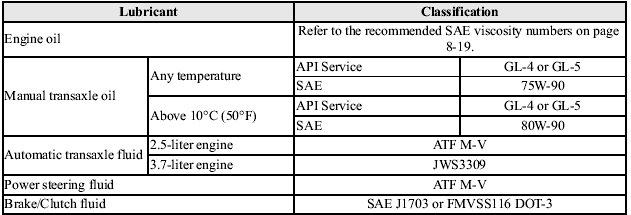

Lubricant Quality

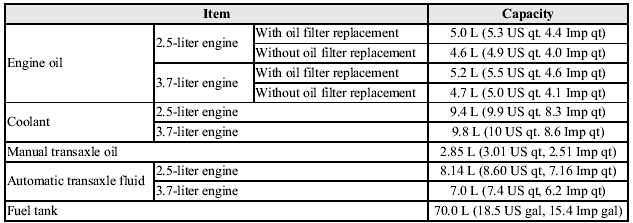

Capacities


Capacities

(Approximate Quantities)

Check oil and fluid levels with dipsticks or reservoir gauges.


Check oil and fluid levels with dipsticks or reservoir gauges.

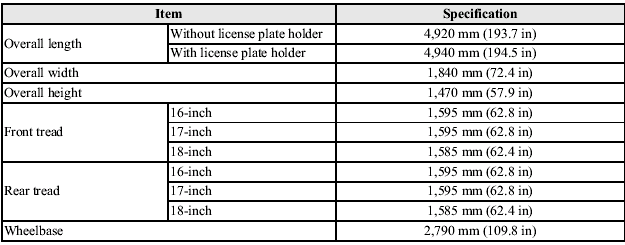

Dimensions

Weights


Weights

2.5-liter engine

Manual transaxle

Automatic transaxle


Automatic transaxle

3.7-liter engine


3.7-liter engine

Air Conditioner


Air Conditioner

Light Bulbs


Light Bulbs

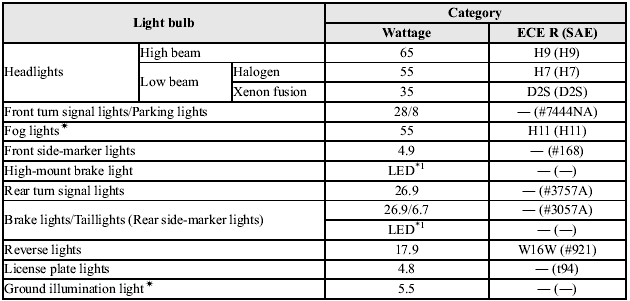

Exterior light

*1 LED is the abbreviation for Light Emitting Diode.


*1 LED is the abbreviation for Light Emitting Diode.

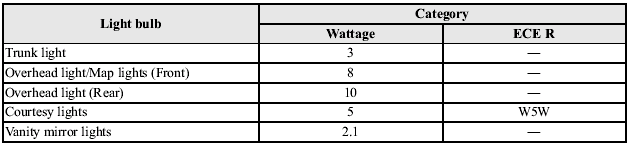

Interior light

Tires


Tires

NOTE:
- The tires have been optimally matched with the chassis of your vehicle.

When replacing tires, Mazda recommends that you replace tires of the same type originally fitted
to your vehicle. For details, contact an Authorized Mazda Dealer.

- When changing tires extra care must be taken to be sure the TPMS is working.)

Check the tire pressure label for tire size and inflation pressure.

Refer to Tire Inflation Pressure.

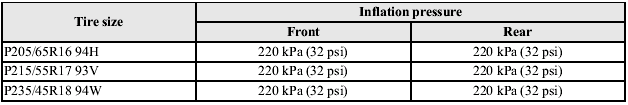

Standard tire

Temporary spare tire


Temporary spare tire

Fuses


Fuses

Refer to the fuse rating.
