Vent Operation

Vent Operation
Vent Operation

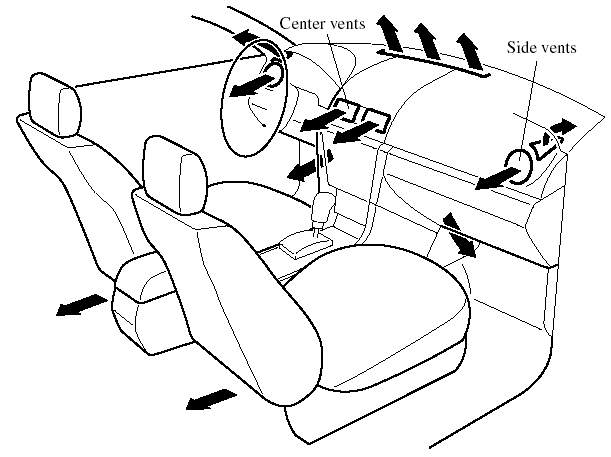

Adjusting the Vents

Directing airflow

Side Vents

To adjust the direction of airflow, open the


To adjust the direction of airflow, open the vents and rotate them left and right.

Center Vents

To adjust the direction of airflow, move


To adjust the direction of airflow, move the adjustment knob.

NOTE:
When using the air conditioner under humid ambient temperature conditions, the system may blow condensed air (fog) from the vents.

This is not a sign of trouble but a result of humid air being suddenly cooled.

Selecting the Airflow Mode

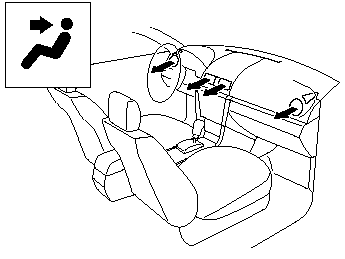

Dashboard Vents
Dashboard Vents

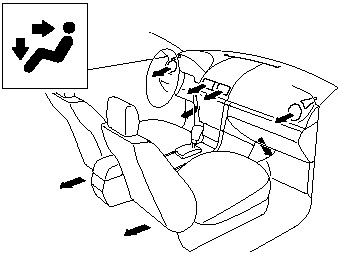

Dashboard and Floor Vents
Dashboard and Floor Vents

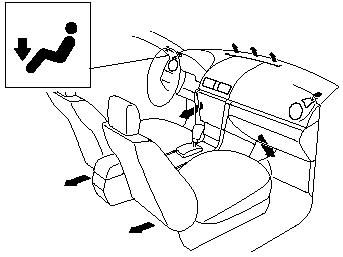

Floor Vents
Floor Vents

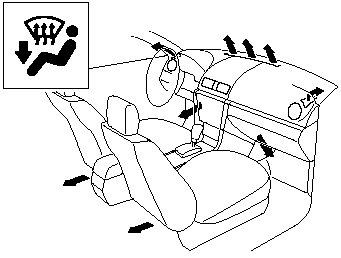

Defroster and Floor Vents
Defroster and Floor Vents

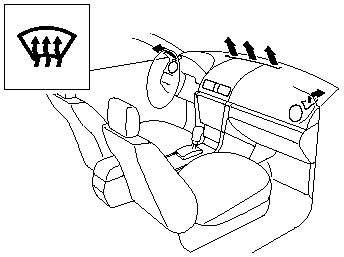

Defroster Vents
Defroster Vents
