Steering Wheel
WARNING:
Never adjust the steering wheel while
the vehicle is moving:
Adjusting the steering wheel while
the vehicle is moving is dangerous.
Moving it can very easily cause the driver to abruptly turn to the left or right. This can lead to loss of control or an accident.

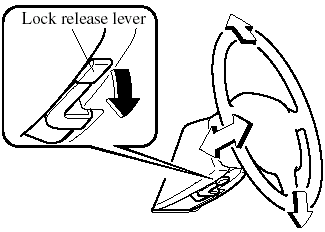

Steering Wheel Adjustment
To change the angle or length of the steering wheel:
1. Stop the vehicle, pull down the lock release lever under the steering column.
2. Tilt the steering wheel and/or adjust the steering column length to the desired positions, push the lever up to lock the column.
3. Push the wheel up and down to be certain it's locked before driving.
