Interior Lights

Illuminated Entry System

When the illuminated entry system operates, the overhead light (switch is in the DOOR position) turns on for: - About 30 seconds after the driver's door is unlocked and the ignition switch is in the LOCK position (with the ignition key removed).

- About 15 seconds after all doors are closed (If your vehicle is equipped with the advanced key, the overhead light turns on for about 5 seconds when the advanced key is outside of the vehicle).

- About 15 seconds after the ignition switch is in the LOCK position (with the ignition key removed) with all doors closed.

The light also turns off when: - The ignition switch is turned to the ON position and all doors are closed.

- The driver's door is locked.

NOTE:
Battery saver.

If any door is left opened, the light goes out after about 30 minutes to save the battery.

The light turns on again when the ignition switch is turned to the ON position, or when any door is opened after all doors have been closed.

Overhead Lights

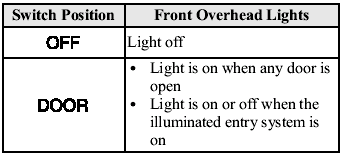

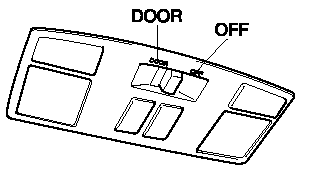

Front
Front

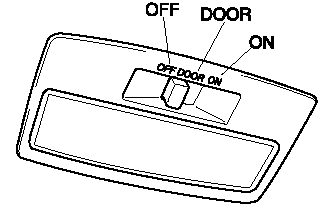

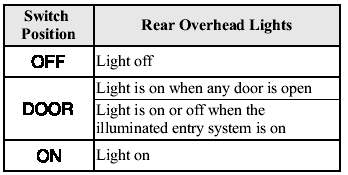

Rear
Rear

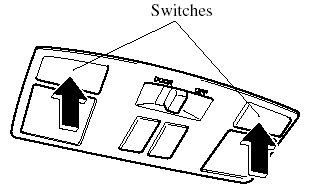

Map Lights


Map Lights

The map lights are switched on or off by


The map lights are switched on or off by pressing the switches.

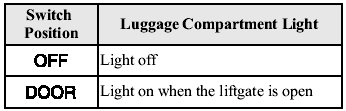

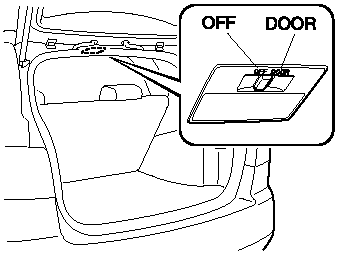

Luggage Compartment Light
Luggage Compartment Light
