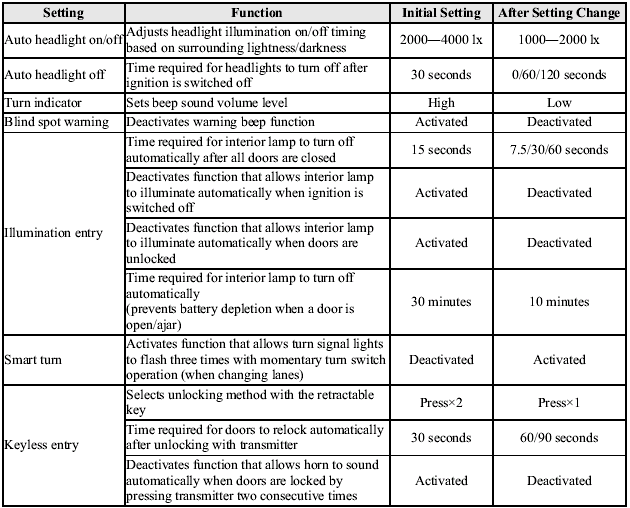

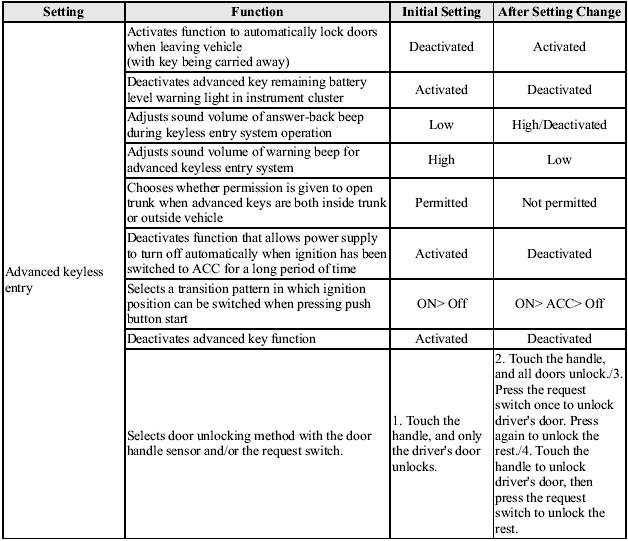

Personalization Features
The following “Personalization Features” are possible. These settings can only be changed by an Authorized Mazda Dealer.
The following “Personalization Features” can be changed by customer.
See also:
Sunvisors
When you need a sunvisor, lower it for
use in front or swing it to the side.
Side Extension Sunvisors
The visor extender extends the sunvisor's
range of sun shading.
To use, pull it out.
CAU ...
Steps for Determining the Correct Load Limit:
Steps for Determining Correct Load Limit:
(1) Locate the statement “The combined weight of occupants and cargo should
never exceed XXX kg or XXX lbs” on your vehicle's placard.
(2) Determine the co ...
Manual Transaxle Operation
Manual Transaxle Shift Pattern
The vehicle is equipped with either a 5-
speed or 6-speed manual transaxle. The
shift pattern for each is shown above.
Depress the clutch pedal all the way down
w ...
