Types of the Climate Control System

Manual type and automatic type climate control systems are explained


Manual type and automatic type climate control systems are explained separately. Check
your vehicle's climate control type and read the appropriate pages.

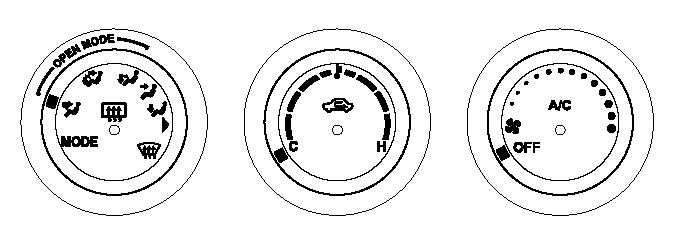

Manual Type

Automatic Type


Automatic Type

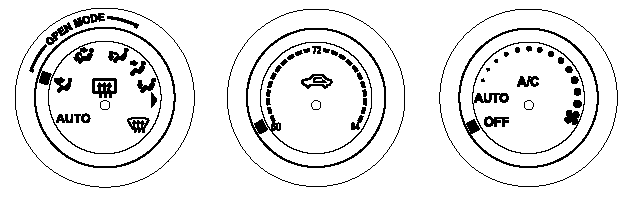

Type A

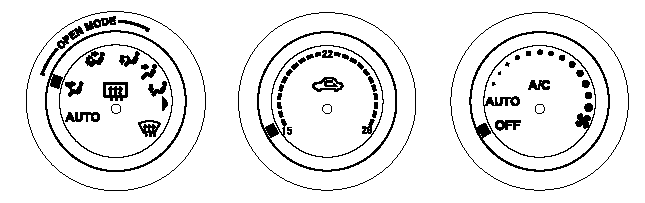

Type B


Type B
