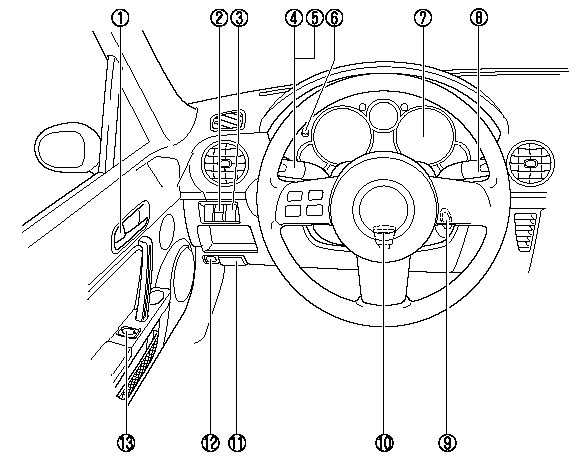

Interior Equipment (View A)
1 Door-lock knob.
2 DSC OFF switch.
3 Passenger air bag deactivation switch.
4 Lighting control.
5 Turn and lane-change signal.
6 Dashboard illumination knob.
7 Instrument cluster.
8 Wiper and washer lever.....
9 Ignition switch.
10 Tilt wheel release lever.
11 Hood release handle.
12 Trunk release button.
13 Outside mirror switch.
