Audio Set

Audio information is displayed on the information display.

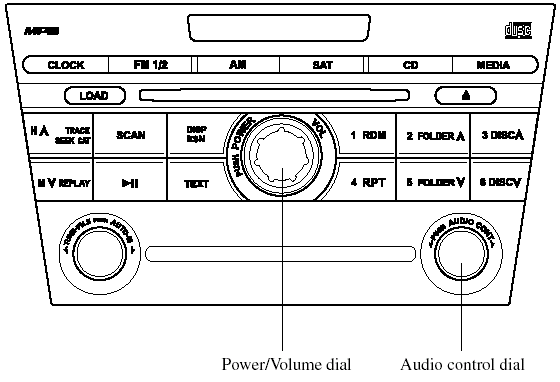

Power/Volume/Sound Controls


Power/Volume/Sound Controls

Power ON/OFF


Power ON/OFF

Turn the ignition switch to the ACC or ON position.

Press the power/volume dial to turn the audio system on.

Press the power/volume dial again to turn the audio system off.

NOTE:
To prevent the battery from being discharged, do not leave the audio system on for a long period of time when the engine is not running.

Volume adjustment

To adjust the volume, turn the power/ volume dial.

Turn the power/volume dial to the right to increase volume, to the left to decrease it.

Audio sound adjustment

1. Press the audio control dial to select the

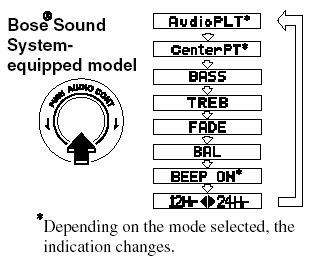

1. Press the audio control dial to select the function. The selected function will be indicated.

2. Turn the audio control dial to adjust the

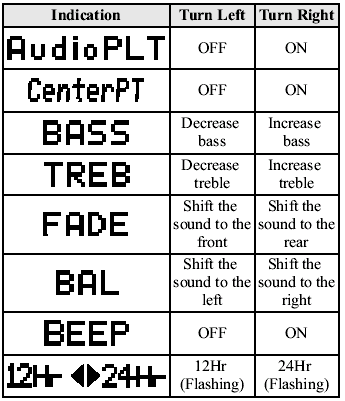

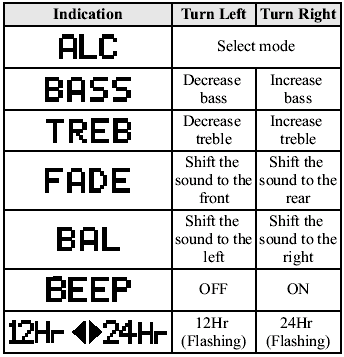

2. Turn the audio control dial to adjust the selected functions as follows:

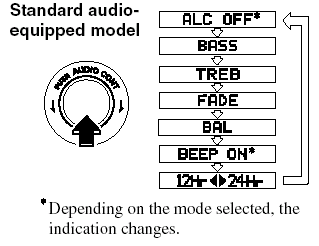

Standard audio-equipped model

Bose® Sound System-equipped model


Bose® Sound System-equipped model

NOTE:


NOTE:
About 5 seconds after selecting any mode, the volume function will be automatically selected.

To reset bass, treble, fade, and balance, press the audio control dial for 2 seconds. The unit will beep and “CLEAR” will be displayed.

Automatic Level Control (ALC)

(Standard audio-equipped model)

The automatic level control is a feature that automatically adjusts audio volume and sound quality according to the vehicle speed.

The volume increases in accordance with the increase in vehicle speed, and decreases as vehicle speed decreases.

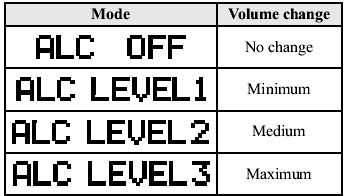

Select the desired ALC mode.

Turn the audio control dial to select ALC

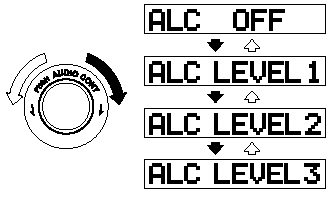

Turn the audio control dial to select ALC OFF or ALC LEVEL1―3 modes. The selected mode will be indicated.

*AUDIOPILOT® (Bose® Sound


*AUDIOPILOT® (Bose® Sound System-equipped model)

AUDIOPILOT® automatically adjusts audio volume and sound quality in accordance with the level of noise entering the vehicle interior while driving.

When AUDIOPILOT® is turned ON, the system automatically calculates the conditions for optimum hearing of sound which may be difficult to hear depending on exterior noise.

* AUDIOPILOT® is a registered trademark of Bose Corporation.

*Centerpoint® (Bose® Sound Systemequipped model)

Centerpoint® offers you the experience of 5.1-channel surround sound in your vehicle even with your conventional 2- channel stereo CDs.

The true surround sound effect of Centerpoint® can be adjusted to any one of five level between minimum and maximum enhancement.

1. Turn the audio control dial and select


1. Turn the audio control dial and select CenterPT ON.

2. Press the audio control dial and select the surround effect mode.

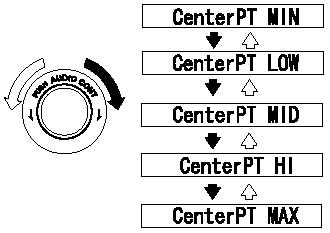

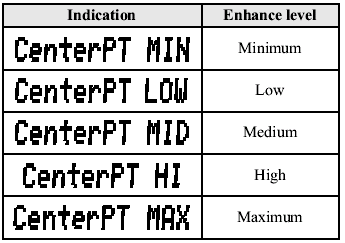

3. Turn the audio control dial to select CenterPT MIN―MAX mode. The selected mode will be indicated.

NOTE:


NOTE:
- Centerpoint® operates optimally with a 2- channel stereo CD. MP3 audio files can be played, however, MP3 audio files encoded with high compression may result in poor sound quality.

- If you are in a mode in which the Centerpoint® function is unavailable, such as AM/FM, and you switch to a mode in which the function is available, such as CD mode, while the Centerpoint® function is on, “CenterPT ON” is indicated in the display. Conversely, if you switch to a mode in which the Centerpoint® function is unavailable while Centerpoint® is on or off, “CenterPT OFF” is indicated in the display.

- Centerpoint® is available for 2-channel stereo audio except for AM radio/FM radio/ SIRIUS digital satellite radio.

* Centerpoint® is a registered trademark of Bose Corporation.

BEEP setting

The beep-sound when operating the audio system can be set on or off.

Time adjustment

Rotating the audio control dial switches the display between 12 and 24-hour clock time.

Operating the Radio

Radio ON


Radio ON

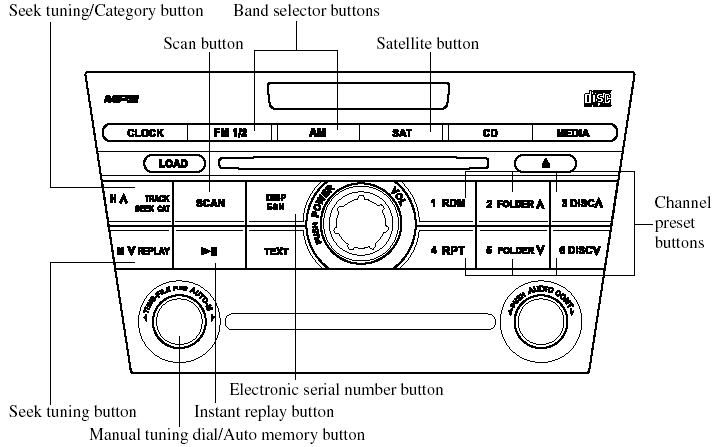

Press a band selector button (),
to turn the radio on.)
to turn the radio on.

Band selection

Choose AM by pressing the AM button (FM1/2) and FM by pressing the
FM1/2
button (The selected mode will be indicated. If).


The selected mode will be indicated. If FM stereo is being received, “ST” will be displayed.

NOTE:
If the FM broadcast signal becomes weak, reception automatically changes from STEREO to MONO for reduced noise, and the “ST” indicator will go out.

Tuning

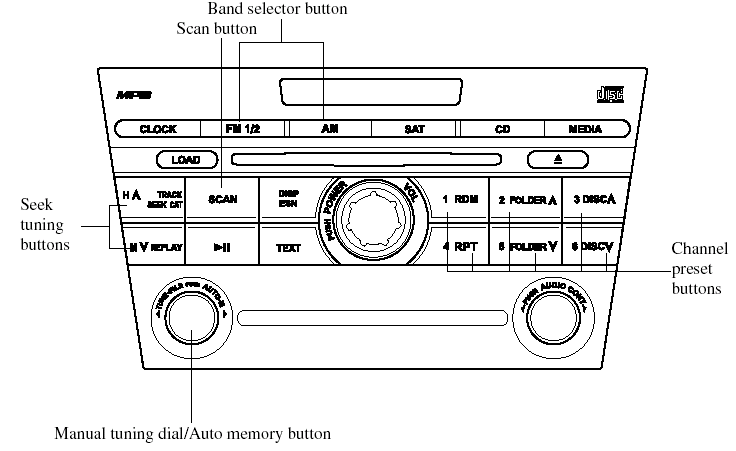

The radio has the following tuning methods: Manual, Seek, Scan, Preset channel, and Auto memory tuning. The easiest way to tune stations is to set them on preset channels.

NOTE:
If the power supply is interrupted (fuse blows or the battery is disconnected), the preset channels will be canceled.

Manual tuning

Turning the manual tuning dial will change the frequency higher or lower.

Seek tuning

Pressing the seek tuning button (),
will cause the tuner to seek a higher or)
will cause the tuner to seek a higher or lower frequency automatically.

NOTE:
If you continue to press and hold the button, the frequency will continue changing without stopping.

Scan tuning

Press the scan button (automatically sample strong stations.) to
automatically sample strong stations.

Scanning stops at each station for about 5 seconds. To hold a station, press the scan button (interval.) again during this
interval.

Preset channel tuning

The 6 preset channels can be used to store 6 AM and 12 FM stations.

1. To set a channel first select AM, FM1, or FM2. Tune to the desired station.

2. Depress a channel preset button for about 2 seconds until a beep sound is heard. The preset channel number and station frequency will be displayed.

The station is now held in the memory.

3. Repeat this operation for the other stations and bands you want to store.

To tune one in the memory, select AM, FM1, or FM2 and then press its channel preset button. The station frequency and the channel number will be displayed.

NOTE:
If the power supply is interrupted (fuse blows or the battery is disconnected), the preset channels will be canceled.

Auto memory tuning

This is especially useful when driving in an area where the local stations are not known. Additional AM/FM stations can be stored without disturbing the previously set channels.

Press and hold the auto memory button (beep) for about 2 seconds until a
beep
sound is heard; the system will automatically scan and temporarily store up to 6 stations with the strongest frequencies in each selected band in that area.

After scanning is completed, the station with the strongest frequency will be tuned and its frequency displayed.

Press and release the auto memory button (autostored) to recall stations from the
autostored
stations. One stored station will be selected each time; its frequency and channel number will be displayed.

NOTE:
If no stations can be tuned after scanning operations, “A” will be displayed.

Operating the Satellite Radio

Information display


Information display

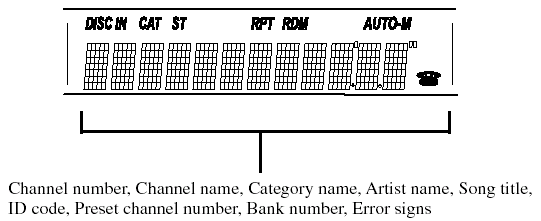

All operations of the satellite radio are displayed on the Information display.

NOTE:


NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, If not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Increase the separation between the equipment and tuner.

- Connect the equipment into an outlet on a circuit different from that to which the tuner is connected.

- Consult the dealer or an experienced radio/ TV technician for help.

Selecting SIRIUS radio mode (Satellite button)

When the satellite button is pressed, it will


When the satellite button is pressed, it will play the last selected SIRIUS channel.

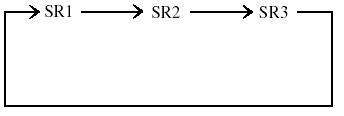

Every time the satellite button is pressed, the bank is changed over in the order shown below.

NOTE:
SR1, SR2 and SR3: six stations can be stored in each bank for convenient access to your favorite stations.

Channel selection (Manual tuning dial)

Turning the manual tuning dial allows you to select the desired channel.

- Turn the manual tuning dial clockwise: Channel Up.

- Turn the manual tuning dial counterclockwise: Channel Down.

Preset channel programming (Channel preset buttons or display button)

1. Channels can be programmed with either a “channel number” or “text” display.

2. Press the display button to select the channel number or desired text (e.g.

channel name) display mode.

3. Select the desired channel to be programmed.

4. Hold down a channel preset button for 1.5 seconds or more, and release when the beep is heard.

5. The programming process is complete after the channel number or text blinks.

Preset channel call-up (Channel preset buttons)

Press a channel preset button for about 1.5 seconds.

Category change (Category button)

Press the category button (UP or DOWN) and select the desired category.

- Press the category button (UP): Category up.

- Press the category button (DOWN): Category down.

At this time, the lowest (smallest-number) channel within the category indicated is received.

When the highest (or lowest) category is reached, the display of the category is changed over in the order shown below.

Highest category→Category all→Lowest category

NOTE:
While in “CATEGORY ALL” mode, all channels covering a category can be accessed (Category off condition).

Channel selection within a category (Manual tuning dial)

NOTE:
If the category is not in “ALL”, turning the manual tuning dial moves the channel number up/down in the present category.

- Turn the knob clockwise: Channel Up.

- Turn the knob counterclockwise: Channel Down.

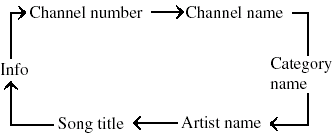

Channel number, channel, category, artist, and song title display (Display button, text button)

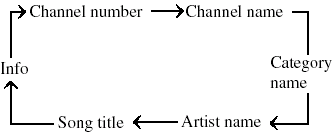

Each time the display button is briefly


Each time the display button is briefly pressed (about 1.5 seconds) during SIRIUS reception, the display of the text data changes in the order shown below.

NOTE:
- Eight characters can be displayed on 1 screen.

- To display the rest of the characters of a long title, press the text button (TEXT). The display scrolls the next 8 characters. Press the text button (TEXT) again after the last 8 characters have been displayed to return to the beginning of the title.

What is satellite radio?

SIRIUS is radio the way it was meant to be: More than 100 new channels of digital quality programming delivered to listeners coast to coast via satellite. That means channels of completely commercial-free music plus more channels of news, sports, and entertainment from names like CNBC, Discovery, SCI-FI Channel, A&E, House of Blues, E!, NPR, Speed vision and ESPN.

SIRIUS is live, dynamic entertainment, completely focused on listeners. Every minute of every day of every week will be different. All commercial-free music channels are created in-house and hosted by DJs who know and love the music. Do you like Reggae? How about Classic Rock or New Rock? SIRIUS has an array of choices spanning a vast range of musical tastes including the hits of the 50's, 60's, 70's, & 80's as well as Jazz, Country, Blues, Pop, Rap, R&B, Bluegrass, Alternative, Classical, Heavy Metal, Dance and many others.

From its state-of-the-art, digital broadcasting facility in Rockefeller Center, New York City, SIRIUS will deliver the broadest, deepest mix of radio entertainment from coast to coast.

SIRIUS will bring you music and entertainment programming that is simply not available on traditional radio in any market across the country. It's radio like you've never heard before.

Sign up for SIRIUS Radio today! For more information, visit siriusradio.com.

Satellite radio can be subscribed to and received in the United States. (Except Alaska and Hawaii) and Canada.

How to subscribe to satellite radio

Once the system is installed you must first subscribe to the SIRIUS Radio service to activate the system.

The SIRIUS Radio service uses an ID code to identify your radio. This code is needed to subscribe to SIRIUS Radio, and if needed, is also used to report any problems should there be any in the future. Listeners can subscribe using any of the following methods: - Visiting SIRIUS on the web at www.

sirius.com.

- Subscribing to SIRIUS customer care, available 24 hours a day, 7 days a week.

- Calling (888) 539-7474.

- E-mail at: customercare@siriusradio.

com.

- Writing to: SATELLITE RADIO 1221 Avenue of the Americas New York, NY 10020.

Attention: Customer Care.

Customers should have their SIRIUS Radio ID Electronic Serial Number (ESN#) ready.

NOTE:
Your ESN# should have been recorded at the time of installation. If not, refer to “DISPLAYING THE SIRIUS ID (ESN)” to retrieve your ESN#.

Satellite radio activation

For activation and subscription information call toll-free at 1-888-539- SIRI (7474). A SIRIUS Customer Care representative will take the necessary information and walk you through the activation process. Or you can visit SIRIUS online at WWW.siriusradio.com and click on the “Join” button.

When you call the SIRIUS Customers Care number you have two options available.

(1) The full package which allows you access to all SIRIUS content except pay- per-view.

(2) The family package which allows access to certain channels. Please see the website: www.sirius.com for details.

Please have the following information ready when attempting to activate your service:
- SIRIUS ID (ESN*).

- Valid credit card information (type, number, expiration date).

- Product serial number.

- Vehicle Identification Number (VIN).

When you are ready to receive the on-air activation signals you will be instructed (for activation via phone) to turn on your tuner, have the antenna pointed skyward, and to set the channel to channel 184.

Once the signal is sent from the national studio it may take up to 10 minutes to be received by your unit.

NOTE:
- On-air activation is completed after the procedure, in most cases from 10 seconds to 10 minutes.

- The VIN/SIRIUS ID (ESN*)/SERIAL No. is printed on the back cover label of the manual.

*ESN: Electronic Serial Number

SIRIUS operation

All operations of the satellite radio are conducted by means of the audio unit.

SIRIUS radio mode selection

When the satellite button is pressed during ACC ON, it will play the last SIRIUS channel in use before the mode was switched over to another mode or the power was turned off.

When the satellite button is pressed in a mode other than the SIRIUS mode, the last channel in use will be received.

Every time the satellite button is pressed,

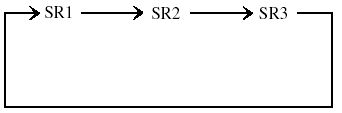

Every time the satellite button is pressed, the bank changes in the order shown below.

NOTE:
SR1, SR2 and SR3: 6 stations can be stored in each bank for convenient access to your favorite stations.

Operation in the initial state

It may take some time to start up the equipment when it is in the initial state, when there is a change in the user's subscription condition, or when the SIRIUS channel map is changed.

“UPDATING xx%” is displayed when the SIRIUS channel map is changed. If the unit is initialized or the user contract content is changed, “UPDATING” is displayed. Updating could take as long as 3 minutes depending on the geographical area. When the unit is in an initialized state, channel 184 is displayed after the display indicates “UPDATING 100%”. If the SIRIUS channel map or the user contract content is changed, the channel prior to the change is displayed after “UPDATING” is displayed. After the initialization display, it may take as long as 12 seconds to receive channel 184.

When the SIRIUS mode is switched to another mode, or when the power is turned off, the present channel which is being received is stored as the last channel.

Channel selection

Turning the manual tuning dial allows you to select the desired receiving channel.

- Turn the knob clockwise: Channel Up.

- Turn the knob counterclockwise: Channel Down.

Unsubscribed channel

When a selected station has not been subscribed to, the display indicates the following:
[CALL + 888] and [539 + SIRI] (Flashes alternately)

NOTE:
When the subscription contract is canceled, all of the channels including channel 184 appear as unsubscribed.

Invalid channel

When a selected channel is not broadcasting, [SR + (bank number) + INVALID] is displayed for 1 second, followed by [SR + (bank number) + CHANNEL], which is also displayed for 1 second. The display then returns to the previous valid channel.

NOTE:
If the last channel selected has become unavailable because of a channel update the above indication is displayed until any button is pressed.

Preset channel programming

(Programming with “channel number” display)

1. Press the display button to select the channel number display mode.

Select the desired channel to be programmed. At this point, the following is displayed:
[SR + (bank number) + (channel number)].

2. Keep pressing the channel preset button for 1.5 seconds or more.

The programming process is complete after the channel number flashes. Then, [SR + (bank number)] is displayed and a beep sound is heard at the same time.

3. [SR + (bank number) + CH + (preset number) + (channel number)] are displayed.

(Programming with “text” display (e.g.

channel name))

1. Press the display button to select the desired text display mode (e.g. channel name).

Select the desired channel to be programmed. At this point, the following is displayed:
[SR + (bank number) + (selected text (e.g. channel name))].

2. Keep pressing the channel preset button for 1.5 seconds or more.

The programming process is complete after the text (e.g. channel name) flashes. Then, [SR + (bank number)] is displayed and you will hear beep sound at the same time.

3. SR + (bank number) + CH + (preset number) + (channel number)] are displayed.

4. Three seconds later, it returns to normal display. [SR + (bank number) + (text (e.g. channel name))]

NOTE:
Six stations can be stored in each bank, SR1, SR2, and SR3 for convenient access to your favorite stations.

Preset channel call-up

Press and release the channel preset button for about 1.5 seconds, [SR + (bank number) + CH + (preset number) + (channel number)] appears.

When the preset button is pressed during text mode, its channel number is displayed first for 3 second and then its text is displayed.

NOTE:
In the initial setting, all channels are preset to 184.

Category change

Press the category button (UP or DOWN) and select the desired category.

- Press the category button (UP): Category up.

- Press the category button (DOWN): Category down.

Every time the category (UP) button is pressed for 1.5 second or less, the category is changed over in the order shown below.

At this time, the lowest (smallest-number) channel within the category indicated is received.

When the highest (or lowest) category is reached, the category is changed over in the order shown below.

Highest category→Category all→Lowest category.

NOTE:
While in “CATEGORY ALL” mode, all channels covering a category can be accessed (Category off condition).

Channel selection within a category

If category is not in “ALL” and the channel number is displayed, turning the manual tuning dial moves the channel number up/down in the present category.

- Turn the manual tuning dial clockwise: Channel Up.

- Turn the manual tuning dial counterclockwise: Channel Down.

NOTE:
The channel number needs to be indicated in the display to use manual tuning dial for this function.

Channel number, channel name, category, artist, song titles and info display

Each time the display button is briefly


Each time the display button is briefly pressed (about 0.5 seconds) during SIRIUS reception, the display of the text data is changed over in the order shown below.

NOTE:
- Eight characters are displayed on 1 screen.

- To display the rest of the characters of a long title, press the text button (The display scrolls the next 8 characters.).


The display scrolls the next 8 characters.

Press the text button (after) again
after
the last 8 characters have been displayed to return to the beginning of the title.

(Channel number display)

- When the display button is briefly pressed (about 0.5 seconds) while in song title display mode, the mode changes to the channel number display mode.

(Channel name display)

- When the display button is briefly pressed (about 0.5 seconds) while in channel number display mode, it changes to channel name display mode.

- There are short (8 fixed characters) and long names for the channel name.

- The long name is displayed first, and 3 seconds later the short name is displayed. If there is no short name, the long name is displayed.

- To display the rest of the characters of the channel name, press the text button (TEXT). The display scrolls the next 8 characters. Press the text button (TEXT) again after the last 8 characters have been displayed to return to the beginning of the title.

- While the short name is displayed, pressing the text button switches the display to the long name.

- Three seconds after scrolling the long name, the display automatically returns to the first part of the long name. Three more seconds and the short name appears.

- If there is no channel name, “No TITLE” is displayed.

(Category name display)

- When the display button is briefly pressed (about 0.5 seconds) while in channel name display mode, it changes to the category name display mode.

- There are short (8 fixed characters) and long names for the category name.

- The long name is displayed first, and 3 seconds later the short name is displayed. If there is no short name, the long name is displayed.

- To display the rest of the characters of the category name, press the text button (TEXT). The display scrolls the next 8 characters. Press the text button (TEXT) again after the last 8 characters have been displayed to return to the beginning of the title.

- While the short name is displayed, pressing the text button switches the display to the long name.

- Three seconds after scrolling the long name, the display automatically returns to display the first part of the long name. Three more seconds and the short name appears.

- If there is no category name, “No CATEGORY” is displayed.

(Artist name display)

- When the display button is briefly pressed (about 0.5 seconds) while in category name display mode, it changes to the artist name display mode.

- To display the rest of the characters of the artist's name, press the text button (TEXT). The display scrolls the next 8 characters. Press the text button (TEXT) again after the last 8 characters have been displayed to return to the beginning of the title.

- Three seconds after scrolling the artist name, the display automatically return to display the first part of the artist's name.

- If there is no artist's name, “No ARTIST” is displayed.

(Song title display)

- When the display button is briefly pressed (about 0.5 seconds) while in artist name display mode, it changes to the song title display mode.

- To display the rest of the characters of the song title, press the text button (TEXT). The display scrolls the next 8 characters. Press the text button (TEXT) again after the last 8 characters have been displayed to return to the beginning of the title.

- Three more seconds after scrolling the song title, the display automatically returns to display the first part of the song title.

- If there is no song title, “No SONG” is displayed.

(INFO (such as composer's name) display)

- When the display button is briefly pressed (about 1.5 seconds) while in song title display mode, it changes to the INFO display mode.

- To display the rest of the characters of the composer's name, press the text button (TEXT). The display scrolls the next 8 characters. Press the text button (TEXT) again after the last 8 characters have been displayed to return to the beginning of the title.

- Three seconds after scrolling the text, the display automatically returns to display the first part of the text.

- If there is no composer name, “No INFO” is displayed.

Instant replay

This function allows you to rewind and replay the program that you were previously or are currently listening to.

Press the instant replay button.

When the seek tuning button (is)
is
briefly pressed (about 0.5 seconds), playback starts from the beginning of the current program.

When the seek tuning button (is)
is
pressed twice, playback starts from the beginning of the previous program.

When the seek tuning button (is)
is
pressed for about 0.5 seconds or longer, the program is reversed while the button is being pressed.

When the seek tuning button (is)
is
briefly pressed (about 0.5 seconds), playback starts from the beginning of the next program. When the seek tuning button ((about 0.5) is briefly pressed
(about 0.5
seconds) while the last program is being played, the instant replay mode is cancelled.

When the seek tuning button (is)
is
pressed for 0.5 seconds or longer, the program is fast-forwarded while the button is being pressed. When pressing and holding the button until the end of the program, the instant replay mode is cancelled.

When the instant replay button is pressed again, playback is temporarily stopped, or playback starts if it has been temporarily stopped.

NOTE:
If the channel is changed, the instant replay buffer data is deleted.

(How to cancel the instant replay)

- Turn off the ACC or POWER.

- Press any one of the following buttons: FM/AM, CD, MEDIA, SAT, TRACK/ SEEK/CAT, or a channel preset button.

- Insert or play a CD.

Displaying the SIRIUS ID (ESN)

When the ESN button is pressed for 1.5 seconds or longer, a 12-digit Electronic Serial Number (ESN) for the SIRIUS tuner is displayed.

[SR + (bank number) + (first 8 digits of SIRIUS ID (ESN))] are displayed.

The 4 digits following the first 8 digits are displayed by pressing the text button.

While the last 4 digits of the 12-digit SIRIUS ID (ESN) are displayed, pressing the text button displays the first 8 digits of SIRIUS ID (ESN).

(How to clear the message)

- Turn off the ACC.

- Turn off the POWER.

- Press any one of the following buttons: FM/AM, CD, MEDIA, SAT, ESN/ DISP, CAT, SCAN, Instant replay, or a channel preset button.

- Insert or play a CD.

(If the SIRIUS ID (ESN) for the tuner does not display)

If “ESN + FAIL” is displayed after pressing the ESN button for 1.5 seconds or longer, contact an Authorized Mazda Dealer.

Initialization of ID code

If the registered ID code is forgotten, return the ID code to the default [0000] by performing the following steps: Setting condition: SAT mode

(Master code input preparation)

1. Hold the auto memory button, then press channel preset button 4, hold both buttons together for 1.5 seconds.

2. “ENTER PIN” appears for 2 seconds which indicates that it is in code input mode.

3. “SR1 - - - -” appears, which indicates that it is ready for code input.

(Master code input)

4. Input the master code using the channel preset buttons 1-4.

Press the auto memory button inputting the code.

(The master code is already set at the time of factory shipment.)

(Master code input determination)

5. Determine the master code which has been input by pressing the auto memory button briefly.

6. “PIN CLEARED” appears which indicates that the master code input has been completed.

7. The ID code is set to the default [0000] and the initialization process is completed.

NOTE:
Master code:
The Master Code is used to initialize or reinitialize the ID code in the event that the code is not set to [0000] and/or the personalized ID code is not known. The initialization process resets the ID code to [0000]. The master code can potentially defeat the intent of the security of the parental lock if it is located by persons not authorized by the owner to access certain channels.

SIRIUS Satellite Radio Master Code: [0913]

(How to clear the message)

- Press any of the following FM/AM, SAT, CD, MEDIA, TEXT, CAT, ESN/ DISP, Instant replay, POWER buttons.

- Turn the ACC off or insert a CD.

NOTE:
- When a numeric value other than the master code is input and the auto memory button is pressed, “SR1 Err” is displayed and then it returns to the “SR1 - - - -” display again.

- If an ID code is not input for 10 seconds, “Err” is displayed and it returns to the former display.

- Channel preset buttons 1, 2, 3, 4 and the auto memory button are used for inputting the ID code. Buttons 5 and 6 cannot be used.

Change of ID code

Setting condition: SAT mode

(Registered ID code input)

1. Hold the auto memory button, then press channel preset button 5, hold both buttons together for 1.5 seconds.

2. “ENTER PIN” appears for 2 seconds which indicates that it is in code input mode.

3. “SR1 - - - -” appears, which indicates that it is ready for code input.

4. Input the registered ID code using channel preset buttons 1-4. Then press the auto memory button.

Example: When the registered ID code is “2323”, input “2323”. At this time “SR1 2323” is displayed.

Press 1 for the first digit, 2 for the second, 3 for the third, and 4 for the last digit. For example, if your number is 2323, press 1 three times, 2 four times, 3 three, and 4 four times. If the display goes off while inputting, begin from Step 1.

NOTE:
The registered ID code is the default [0000] at the time of factory shipment. If [0000] results in “Err” on the display, go to the “INITIALIZATION OF ID CODE” section to reset to [0000].

(Verification with the registered ID code)

5. Determine the input code by pressing the auto memory button briefly.

6. If it does not match with the previously registered code, “SR1 Err” is displayed and then it returns to “SR1 - - - -”.

7. If it matches with the previously registered code, “ENTER PIN” appears again and it switches to code input mode.

8. “SR1 - - - -” appears, and it is ready for input of the new ID code.

(New ID code input)

9. Input the new ID code using channel preset buttons 1-4.

Example: If “1234” is input as the new code, “SR1 1234” is displayed.

Press the auto memory button after the code is input.

(New ID code input determination)

10. Determine the new ID code which has been input by pressing the auto memory button briefly.

11. “PIN CHANGED” appears for 3 seconds which indicates that the new ID code input has been completed.

12. It returns to the former display.

(How to clear the message)

- Press any of the following FM/AM, SAT, CD, MEDIA, TEXT, CAT, ESN/ DISP, Instant replay, POWER buttons.

- Turn the ACC off or insert a CD.

NOTE:
- If an ID code is not input for 10 seconds, “Err” is displayed and it returns to the former display.

- Channel preset buttons 1, 2, 3, 4 and the auto memory button are used for input of the ID code. Buttons 5 and 6 cannot be used.

Individual channel locking

If a channel is locked, the channel is muted.

NOTE:
If the registered ID code is forgotten, return the ID code to the default [0000]. (See “INTIALIZATION OF ID CODE” section)

(Locking a channel)

1. Select a channel to be locked by pressing the tune button.Example: Select channel 100

(Registered ID code input preparation)

2. Hold the auto memory button, then press channel preset button 6, hold both buttons together for 1.5 seconds.

3. “ENTER PIN” appears for 2 seconds which indicates that it is in code input mode.

4. “SR1 - - - -” appears which indicates that it is ready for code input.

(Registered ID code input)

5. Input the registered ID code using channel preset buttons 1-4. Example: If the registered ID code is “2323”, input “2323”. At this time “SR1 2323” is displayed. Press the auto memory button after the code is input.

(Registered ID code input determination)

6. Determine the code which has been input by pressing the auto memory button briefly.

7. If it does not match the registered code, “SR1 Err” is displayed and then it returns to “SR1 - - - -”.

8. If it matches the registered code, “SR1 LOCK” appears for 3 seconds which indicates that the code input has been completed.

9. “SR1 LOCK 100” appears which indicates that the parental lock is activated. At this time, mute is on and no sound is heard.

(How to clear the message)

- Press any of the following FM/AM, SAT, CD, MEDIA, TEXT, CAT, ESN/ DISP, Instant replay, POWER buttons.

- Turn the ACC off or insert a CD.

NOTE:
- If an ID code is not input for 10 seconds, “Err” is displayed and it returns to the former display.

- Channel preset buttons 1, 2, 3, 4 and the auto memory button are used for input of the ID code. Buttons 5 and 6 cannot be used.

Lock cancellation

Setting condition: SAT mode

(Releasing a locked channel)

1. Select a channel to be released by pressing the tune button. Example: Select the locked channel (i.e. 100). At this time, “SR1 LOCK 100” is displayed.

(Registered ID code input preparation)

2. Hold the auto memory button, then press channel preset button 6, hold both buttons together for 1.5 seconds.

3. “ENTER PIN” appears for 2 seconds which indicates that it is in code input mode.

4. “SR1 - - - -” appears, which indicates that it is ready for code input.

(Registered ID code input)

5. Input the registered ID code using channel preset buttons 1-4. Example: When the registered ID code is “2323”, input “2323”. At this time “SR1 2323” is displayed. Press the auto memory button after the code is input.

NOTE:
If “Err” is displayed, go to the “INITIALIZATION OF ID CODE” section to reset the ID code to [0000].

(Registered ID code input determination)

6. Determine the input code by pressing the auto memory button briefly.

7. If it does not match the registered code, “SR1 Err” is displayed and then it returns to “SR1 - - - -”.

8. If it matches the registered code, “SR1 UNLOCK” appears for 3 seconds which indicates that the code input has been completed.

9. “SR1 100” appears which indicates that the parental lock is off. At this time, sound is heard.

(How to clear the message)

- Press any of the following FM/AM, SAT, CD, MEDIA, TEXT, CAT, ESN/ DISP, Instant replay, POWER buttons.

- Turn the ACC off or insert a CD.

NOTE:
- If an ID code is not input for 10 seconds, “Err” is displayed and it returns to the former display.

- Channel preset buttons 1, 2, 3, 4 and the auto memory button are used for input of the ID code. Buttons 5 and 6 cannot be used.

Error signs

(1) Depending on the surrounding conditions (such as large trees, buildings, or tunnels) and special weather conditions, the reception of SIRIUS radio waves may be decreased or temporarily interrupted.

“ACQUIRING SIGNAL” may
appear.

(2) In case of an antenna malfunction, “ANTENNA FAIL” is displayed.

Check the satellite radio antenna, antenna cable and DLP antenna connector.

NOTE:
If a broken DLP* unit is replaced with a new unit, cancel the license for the broken unit and make sure to carry out new registration for the replaced unit. If the license for the broken unit is not canceled, you will be charged a reception fee for both units.

* DLP: Down Link Processor (SATELLITE RADIO Module)

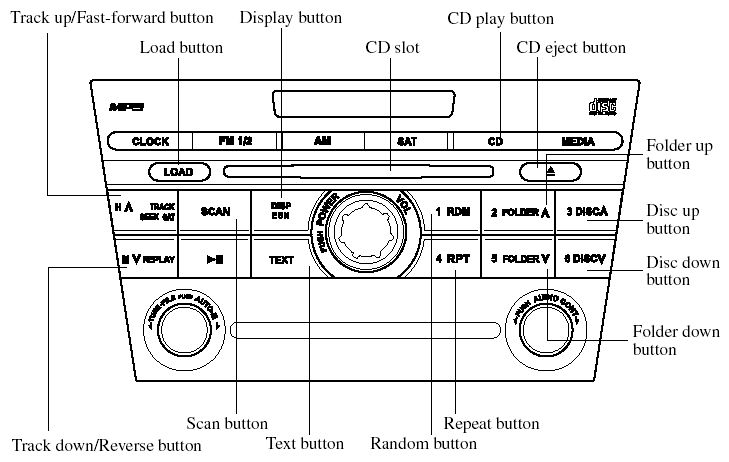

Operating the Compact Disc (CD) Player


NOTE:


NOTE:
If a disc has both music data (CD-DA) and MP3 files, playback of the two file types differs depending on how the disc was recorded.

Inserting the CD

Insert the CD into the slot, label-side up.

The auto-loading mechanism will set the CD and begin play. There will be a short lapse before play begins while the player reads the digital signals on the CD.

Ejecting the CD

Press the CD eject button (to eject the)
to eject the
CD.

Playback

Press the CD play button (to start)
to start
play when a CD is in the unit.

If a CD is not in the unit when the CD play button (DISC”) is pressed, “NO
DISC”
will flash on and off.

NOTE:
When the load button (pressed, the) is
pressed, the
CD will load and play even if the CD eject button (

previously pressed.) had been
previously pressed.

Fast-forward/Reverse

Press and hold the track up button (to)
to
advance through a track at high speed.

Press and hold the track down button (to reverse through a track at high speed.)
to reverse through a track at high speed.

Track search

Press the track up button (or turn the)
or turn the
file dial clockwise once to skip forward to the beginning of the next track.

Press the track down button (or turn)
or turn
the file dial counterclockwise once to skip back to the beginning of the current track.

Folder search (during MP3 CD playback)

To change to the previous folder, press the folder down button (press the), or
press the
folder up button (to the) to advance
to the
next folder.

Music scan

This feature helps to find a program by playing about the first 10 seconds of each track.

Press the scan button (during)
during
playback to start the scan play operation (the track number will flash).

Press the scan button (to) again
to
cancel scan playback.

NOTE:
If the unit is left in scan, normal playback will resume where scan was selected.

Repeat playback

During music CD playback

1. Press the repeat button (during)
during
playback to play the current track repeatedly. “RPT” is displayed.

2. Press the button again to cancel the repeat playback.

During MP3 CD playback

(Track repeat)

1. Press the repeat button (during)
during
playback to play the current track repeatedly. “TRACK RPT” is displayed.

2. To cancel the repeat playback, press the button again after 3 seconds.

(Folder repeat)

1. Press the repeat button (during)
during
playback, and then press the button again within 3 seconds to play the tracks in the current folder repeatedly.

“FOLDER RPT” is displayed.

2. Press the button again to cancel the repeat playback.

Random playback

Tracks are randomly selected and played.

During music CD playback

1. Press the random button (during)
during
playback to play the tracks on the CD randomly. “RDM” is displayed.

2. Press the button again to cancel the random playback.

During MP3 CD playback

(Folder random)

1. Press the random button (during)
during
playback to play the tracks in the folder randomly. “FOLDER RDM” is displayed.

2. To cancel the random playback, press the button again after 3 seconds.

(CD random)

1. Press the random button (during)
during
playback, and then press the button again within 3 seconds to play the tracks on the CD randomly.

“DISC RDM” is displayed.

2. Press the button again to cancel the random playback.

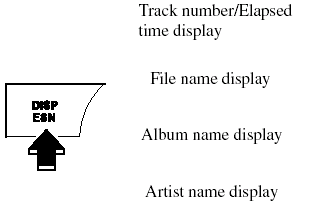

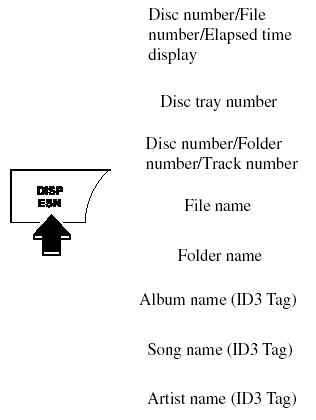

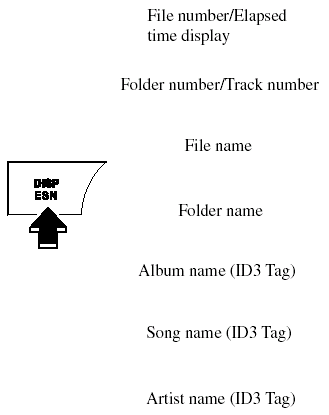

Switching the display

For files with a file name or other name that have been input, the display changes in the order of the file names or other names each time the display button (is pressed during playback.)
is pressed during playback.

Music CD

MP3 CD


MP3 CD

NOTE:


NOTE:
(MP3 CD).

This unit can only read English (including numerals) one-byte characters. Depending on the CD writing software used, proper display may not be possible.

Display scroll

Only 8 characters (File name) or 12 characters (Except file name) can be displayed at one time. To display the rest of the characters of a long title, press the text button (scrolls). The display
scrolls
the next 12 characters. Press the text button (12) again after the last
12
characters have been displayed to return to the beginning of the title.

NOTE:
The displayable number of characters is limited. If the number of characters, including the file extension (.mp3), exceeds 32 characters, it may not be fully displayed.

Message display

If “CHECK CD” is displayed, it means that there is some CD malfunction. Check the CD for damage, dirt, or smudges, and then properly reinsert. If the message appears again, take the unit to an Authorized Mazda Dealer for service.

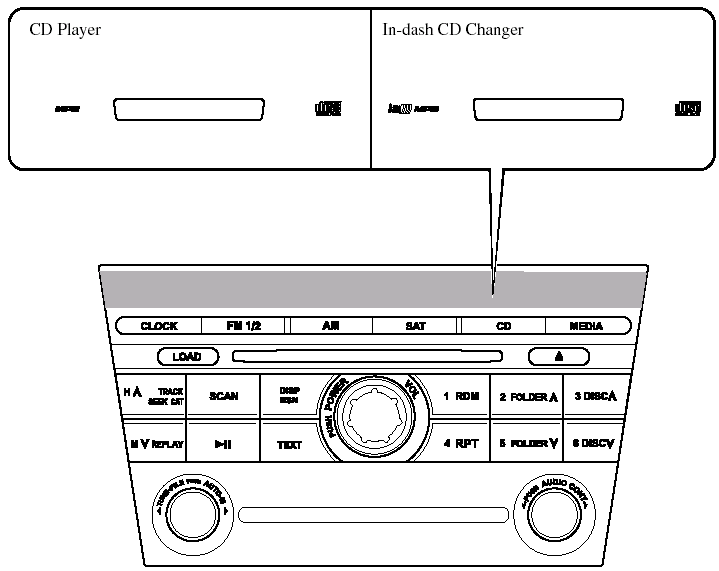

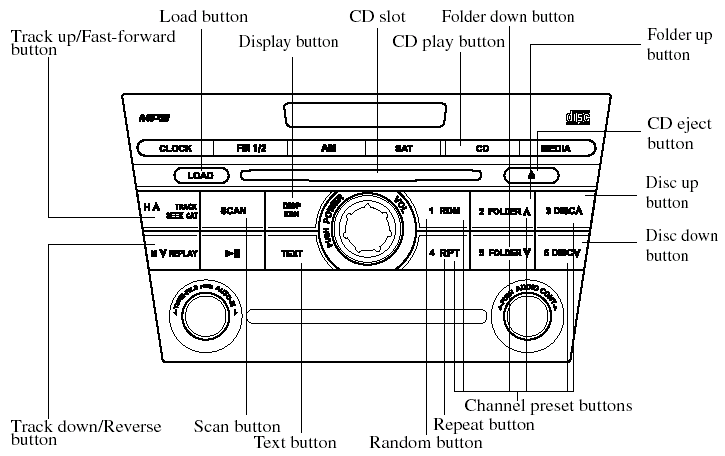

Operating the In-Dash CD Changer


NOTE:


NOTE:
If a disc has both music data (CD-DA) and MP3 files, playback of the two file types differs depending on how the disc was recorded.

Inserting the CD

The CD must be label-side up when inserting. The auto-loading mechanism will set the CD and begin play. There will be a short lapse before play begins while the player reads the digital signals on the CD.

The disc number and the track number will be displayed.

NOTE:
The CD will begin playback automatically after insertion.

A CD cannot be inserted while the display reads “WAIT”. A beeping sound can be heard during this waiting time.

Normal insertion

1. Press the load button (2. When “IN” is displayed, insert the CD.).


2. When “IN” is displayed, insert the CD.

Inserting CDs into desired tray number

1. Press and hold the load button (for about 2 seconds until a beep sound)
for about 2 seconds until a beep sound is heard.

2. Press the channel preset button for the desired tray number while “WAIT” is displayed.

3. When “IN” is displayed, insert the CD.

NOTE:
The CD cannot be inserted to the desired tray number if the number is already occupied.

Multiple insertion

1. Press and hold the load button (for about 2 seconds until a beep sound)
for about 2 seconds until a beep sound is heard.

2. When “IN” is displayed, insert the CD.

3. When “IN” is displayed again, insert the next CD.

NOTE:
The first-inserted CD will be played automatically when:
- No other CD is inserted within 15 seconds after “IN” is displayed.

- The CD trays are full.

Displaying the CD-inserted tray number

When you want to know the number for a CD-inserted tray, press the display button (displayed). The tray number will be
displayed
for 5 seconds.

Ejecting the CD

Normal ejection

1. Press the CD eject button (The).
The
disc number and “DISC OUT” will be displayed.

2. Pull out the CD.

NOTE:
When the CD is ejected during play, the next CD will be played automatically.

Ejecting CDs from desired tray number

1. Press and hold the CD eject button (for about 2 seconds until a beep sound)
for about 2 seconds until a beep sound is heard.

The “DISC OUT” display flashes.

2. Press the channel preset button for the desired CD number for less than 5 seconds after the beep sound is heard.

3. Pull out the CD.

Multiple ejection

1. Press and hold the CD eject button (for about 2 seconds until a beep sound)
for about 2 seconds until a beep sound is heard.

The “DISC OUT” display flashes.

2. Press the CD eject button (again)
again
for less than 5 seconds after the beep sound is heard.

NOTE:
If the button is not pressed and about 5 seconds have elapsed while “DISC OUT” is flashing, CDs are automatically ejected.

3. Pull out the CD, then the next CD will be ejected.

NOTE:
- CDs will be ejected starting with the one with the lowest number.

- All CDs in the tray will be ejected continuously.

- CDs can be ejected when the ignition switch is off. Press and hold the CD eject button (

seconds and all) for about 2
seconds and all
CDs will eject.

Playback

Press the CD play button (to start)
to start
play when a CD is in the unit.

If a CD is not in the unit when the CD play button (DISC”) is pressed, “NO
DISC”
will flash on and off.

Fast-forward/Reverse

Press and hold the track up button (to)
to
advance through a track at high speed.

Press and hold the track down button (to reverse through a track at high speed.)
to reverse through a track at high speed.

Track search

Press the track up button (or turn the)
or turn the
file dial clockwise once to skip forward to the beginning of the next track.

Press the track down button (or turn)
or turn
the file dial counterclockwise once to skip back to the beginning of the current track.

Disc search

During music CD playback

To change the disc, press the DISC button () during playback. or
During MP3 CD playback) during playback.


During MP3 CD playback

To change the disc, press the DISC button () for 1.5 seconds or or
more during playback.) for 1.5 seconds or
more during playback.

Folder search (during MP3 CD playback)

To change to the previous folder, press the folder down button (than 1.5) for less
than 1.5
seconds, or press the folder up button (for less than 1.5 seconds to advance to the)
for less than 1.5 seconds to advance to the next folder.

Music scan

This feature helps to find a program by playing about the first 10 seconds of each track.

Press the scan button (playback to start the scan play operation) during
playback to start the scan play operation (the track number will flash).

Press the scan button (to) again
to
cancel scan playback.

NOTE:
If the unit is left in scan, normal playback will resume where scan was selected.

Repeat playback

During music CD playback

1. Press the repeat button (during)
during
playback to play the current track repeatedly. “RPT” is displayed.

2. Press the button again to cancel the repeat playback.

During MP3 CD playback

(Track repeat)

1. Press the repeat button (during)
during
playback to play the current track repeatedly. “TRACK RPT” is displayed.

2. To cancel the repeat playback, press the button again after 3 seconds.

(Folder repeat)

1. Press the repeat button (during)
during
playback, and then press the button again within 3 seconds to play the tracks in the current folder repeatedly.

“FOLDER RPT” is displayed.

2. Press the button again to cancel the repeat playback.

Random playback

Tracks are randomly selected and played.

During music CD playback

1. Press the random button (during)
during
playback to play the tracks in the CD randomly. “RDM” is displayed.

2. Press the button again to cancel the random playback.

During MP3 CD playback

(Folder random)

1. Press the random button (during)
during
playback to play the tracks in the folder randomly. “FOLDER RDM” is displayed.

2. To cancel the random playback, press the button again after 3 seconds.

(CD random)

1. Press the random button (during)
during
playback, and then press the button again within 3 seconds to play the tracks on the CD randomly.

“DISC RDM” is displayed.

2. Press the button again to cancel the random playback.

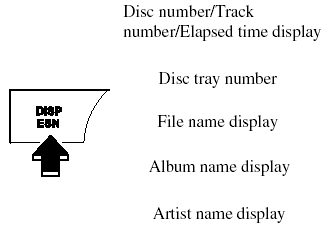

Switching the display

For files with a file name or other name that have been input, the display changes in the order of the file names or other names each time the display button (is pressed during playback.)
is pressed during playback.

Music CD

MP3 CD


MP3 CD

NOTE:


NOTE:
(MP3 CD).

This unit can only read English (including numerals) one-byte characters. Depending on the CD writing software used, proper display may not be possible.

Display scroll

Only 8 characters (File name) or 12 characters (Except file name) can be displayed at one time. To display the rest of the characters of a long title, press the text button (scrolls). The display
scrolls
the next 12 characters. Press the text button (12) again after the last
12
characters have been displayed to return to the beginning of the title.

NOTE:
The displayable number of characters is limited. If the number of characters, including the file extension (.mp3), exceeds 32 characters, it may not be fully displayed.

Message display

If “CHECK CD” is displayed, it means that there is some CD malfunction. Check the CD for damage, dirt, or smudges, and then properly reinsert. If the message appears again, take the unit to an Authorized Mazda Dealer for service.

Operating the Auxiliary jack

You can connect portable audio units or similar products on the market to the auxiliary jack to listen to music or audio over the vehicle's speakers, refer to Auxiliary Input.

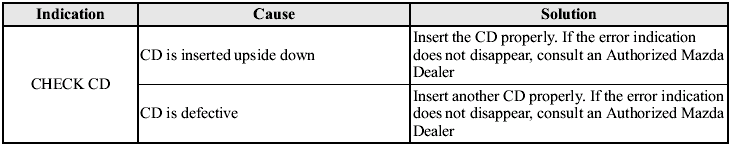

Error Indications

If you see an error indication on the display, find the cause in the chart. If you cannot clear
the error indication, take the vehicle to an Authorized Mazda Dealer.

Audio Control Switch Operation (Steering Wheel)


    See also:

    Audio Set
    Power/Volume/Sound Controls Power ON/OFF Turn the ignition switch to the ACC or ON position. Press the power/volume dial to turn the audio system on. Press the power/volume dial again to tur ...

    Knowing Your Mazda
    Explanation of basic operations and controls; opening/closing and adjustment of various parts. ...

    Hazardous Driving
    Driving on Slippery Surface WARNING: Be extremely careful if it is necessary to downshift on slippery surfaces: Downshifting into lower gear while driving on slippery surfaces is dangerous. The ...
