Front Seats (Electrically Operated Seats)

WARNING:
Do not modify or replace the front seats:
Modifying or replacing the front seats such as replacing the upholstery or loosening any bolts is dangerous. The front seats contain air bag components essential to the supplemental restraint system. Such modifications could damage the supplemental restraint system and result in serious injury. Consult an Authorized Mazda Dealer if there is any need to remove or reinstall the front seats.

Do not drive with damaged front seats: Driving with damaged front seats is dangerous. A collision, even one not strong enough to inflate the air bags, could damage the front seats which contain essential air bag components. If there was a subsequent collision, an air bag may not deploy which could lead to injuries. Always have an Authorized Mazda Dealer inspect the front seats, front seat belt pretensioners and air bags after a collision.

CAUTION:
adjustment is operated by motors. The seat-bottom power
adjustment is operated by motors.

Avoid extended operation because excessive use can damage the motors.

running down, avoid using the To prevent the battery from
running down, avoid using the power adjustment when the engine is stopped. The adjuster uses a large amount of electrical power.

than one adjustment at a time. Don't use the switch to make more
than one adjustment at a time.

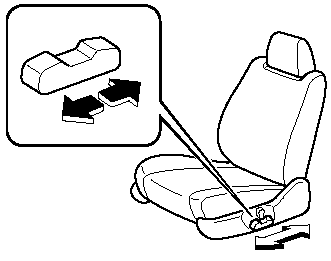

Seat Slide

To slide the seat, move the slide lifter


To slide the seat, move the slide lifter switch on the outside of the seat to the front or back and hold it. Release the switch at the desired position.

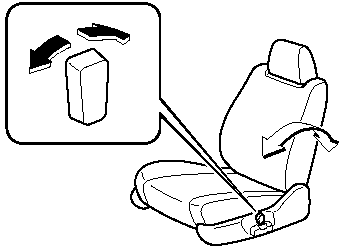

Seat Recline

WARNING:
Do not drive with the seats reclined: Sitting in a reclined position while the vehicle is moving is dangerous because you don't get the full protection from seat belts. During sudden braking or a collision, you can slide under the lap belt and suffer serious internal injuries. For maximum protection, sit well back and upright.

Always sit in a front passenger seat properly with the seatback upright and feet on the floor:
If your vehicle is equipped with front passenger seat weight sensors, sitting in the front passenger seat improperly out of position or with the seatback reclined too far while the vehicle is moving is dangerous as it can take off weight from the seat bottom and affect the weight determination of the front passenger sensing system. As a result the front passenger will not have the supplementary protection of the air bag and seat belt pretensioner, which could cause result in serious injury.

Always sit upright against your seatback, with your feet on the floor.

Change the seatback angle by pressing the


Change the seatback angle by pressing the front or rear side of the reclining switch.

Release the switch at the desired position.

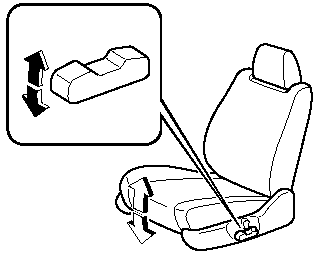

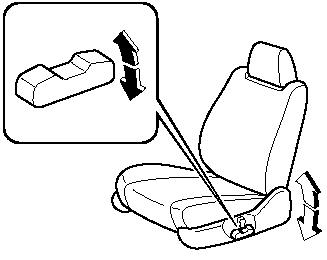

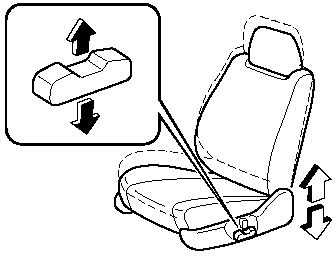

Height Adjustment



The seat height can be adjusted by


The seat height can be adjusted by moving the switch up or down.

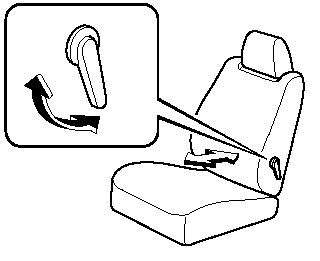

Lumbar Support Adjustment

To increase the seat firmness, pull the


To increase the seat firmness, pull the lever forward. Push the lever backward to decrease firmness.
