Information Display

Information Display Functions


Information Display Functions

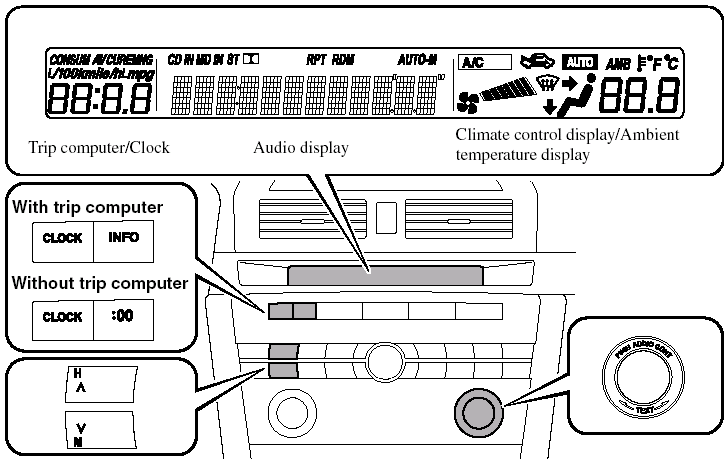

The information display has the following functions: - Clock.

- Ambient Temperature Display (Outside Temperature Display).

- Climate Control Display (Fully Automatic Type Air Conditioning System).

- Audio Display.

- Trip Computer.

Clock

NOTE:
When the trip computer is displayed, press the CLOCK button to change the display to the time.

When the ignition switch is in the ACC or


When the ignition switch is in the ACC or ON position, the time is displayed.

Time setting

1. Press the CLOCK button until the beep sounds and the displayed time flashes.

2. Press the H button to set the hour.

3. Press the M button to set the minutes, then press the CLOCK button.

Time resetting

1. Press the CLOCK button until the beep sounds and the displayed time flashes.

2. Press the: 00 button. When the button is pressed, the beep sounds and the clock resets as follows:

(Example).

12:01―12:29→12:00.

12:30―12:59→1:00.

NOTE:
- When the: 00 button is pressed, the seconds are reset to 00.

- Trip computer-equipped vehicles do not have a reset function.

Switching between 12 and 24-hour clock time

1. Press the audio control dial several times until 12Hr and 24Hr clock time are displayed.

2. Turn the audio control dial in either direction, select the desired clock setting, and then press the audio control dial. Press the dial while the preferred clock time is flashing.

Ambient Temperature Display

With fully automatic type air conditioner

When the ignition switch is in the ON position, press the AMB switch on the air conditioner control panel to display the ambient temperature.

Press the AMB switch again to switch the display from ambient temperature to the temperature set for the air conditioner.

Without fully automatic type air conditioner

When the ignition switch is in the ON


When the ignition switch is in the ON position, the ambient temperature is displayed.

NOTE:
- Under the following conditions, the ambient temperature display may differ from the actual ambient temperature depending on the surroundings and vehicle conditions:     - Significantly cold or hot temperatures.

    - Sudden changes in ambient temperature.

    - The vehicle is parked.

    - The vehicle is driven at low speeds.

- Press the Power/volume switch and MEDIA button simultaneously for 5 seconds or more to switch the display from Fahrenheit to Centigrade or vice versa.

Climate Control Display (Fully Automatic Type)

The climate control system status is displayed. To operate the climate control system, refer to Climate Control System.

Audio Display

The audio system status is displayed. To operate the audio system, refer to Audio System.

Trip Computer

The trip computer can display the following:
- The current fuel economy.

- The average fuel economy.

- The approximate distance you can travel on the available fuel.

- The average vehicle speed.

The ignition switch must be in the ON position.

Press the INFO switch to change the display mode.

NOTE:
When the time is being displayed, press the INFO switch to change the display to the trip computer.

If you have any problems with your trip computer, consult an Authorized Mazda Dealer.

Current fuel economy mode

This mode displays the current fuel economy by calculating the amount of fuel consumption and the distance traveled.

Current fuel economy will be calculated and displayed every 2 seconds.

When this mode is selected, CONSUM CUR will be displayed.

U.S.A.
U.S.A.

CANADA
CANADA

When you've slowed to about 5 km/h (3 mph), L/100 km (mpg) will be displayed.

Average fuel economy mode

This mode displays the average fuel economy by calculating the fuel consumption and the distance traveled since connecting the battery or resetting the data.

Average fuel economy will be calculated and displayed every minute.

When this mode is selected, CONSUM AV will be displayed.

U.S.A.
U.S.A.

CANADA
CANADA

To clear the data being displayed, press the INFO switch for more than 1 second.

After pressing the INFO switch, L/ 100 km ( mpg) will be displayed for about 1 minute before the fuel economy is recalculated and displayed.

Distance-to-empty mode

This mode displays the approximate distance you can travel on the remaining fuel based on the fuel economy.

The distance-to-empty will be calculated and displayed every minute.

When this mode is selected, REMNG will be displayed.

U.S.A.
U.S.A.

CANADA
CANADA

NOTE:
- Even though the distance-to-empty display may indicate a sufficient amount of remaining mileage before refueling is required, refuel as soon as possible if the fuel gauge needle nears E or the low fuel warning light illuminates.

- The display won't change unless you add more than approximately 20 L (5.3 gal) of fuel.

Average vehicle speed mode

This mode displays the average vehicle speed by calculating the distance and the time traveled since connecting the battery or resetting the data.

Average vehicle speed will be calculated and displayed every 10 seconds.

When this mode is selected, AV will be displayed.

U.S.A.
U.S.A.

CANADA
CANADA

To clear the data being displayed, press the INFO switch for more than 1 second.

After pressing the INFO switch, km/h ( mile/h) will be displayed for about 1 minute before the vehicle speed is recalculated and displayed.
