AUX Mode (Auxiliary input)

You can connect portable audio units or


You can connect portable audio units or similar products on the market to the auxiliary jack to listen to music or audio over the vehicle's speakers.

WARNING:
Do not adjust the portable audio unit or a similar product while driving the vehicle:
Adjusting the portable audio unit or a similar product while driving the vehicle is dangerous as it could distract your attention from the vehicle operation which could lead to a serious accident. Always adjust the portable audio unit or a similar product while the vehicle is stopped.

CAUTION:
jack is not in use to prevent Close the cover when the auxiliary
jack is not in use to prevent foreign objects and liquids from penetrating the auxiliary jack.

if the accessory socket equipped Noise may occur during playback
if the accessory socket equipped on the vehicle is used. (If noise occurs, do not use the accessory socket.)

NOTE:
- Before using the auxiliary jack, read the manufacturer's instructions for the product being connected.

- Use a commercially-available, nonimpedance (3.5 connecting the portable audio unit to the) stereo mini plug for
connecting the portable audio unit to the auxiliary jack. Before using the auxiliary jack, read the manufacture's instructions for connecting a portable audio unit to the auxiliary jack.

- To prevent discharging of the battery, do not use the auxiliary input for long periods with the engine off or idling.

- Noise may occur depending on the product connected to the auxiliary jack.

- With regard to connecting a portable audio or similar device to a power source, use the battery for the device, not the accessory socket.

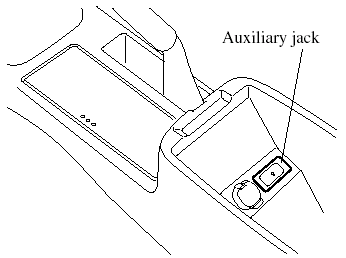

Connecting the auxiliary jack

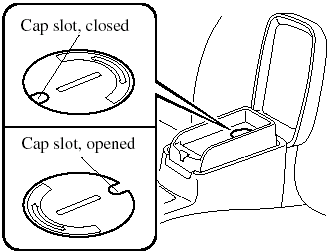

When placing portable audio units or similar products in the tray while connected to the auxiliary jack, pass the connection plug cord through the slot in the cap.

1. Open the console lid by pulling the


1. Open the console lid by pulling the upper release catch.

2. Remove the tray mat.

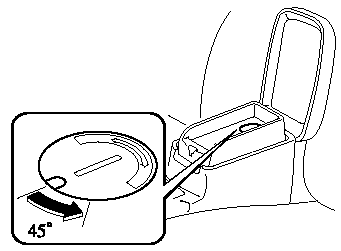

3. Using a coin, turn the cap counterclockwise (about 45° from the closed position) and remove it.

NOTE:
Do NOT discard the cap.

4. Open the tray by pulling the lower


4. Open the tray by pulling the lower release catch.

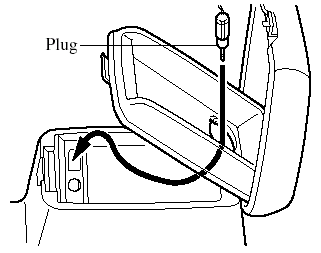

5. Pass the connection plug cord through


5. Pass the connection plug cord through the hole of the tray and insert the plug in the auxiliary jack.

WARNING:
Do not allow the connection plug cord to get tangled with the parking brake or the shift lever:
Allowing the plug cord to become tangled with the parking brake or the shift lever is dangerous as it could interfere with driving, resulting in an accident.

CAUTION:
Do not place objects or apply force to the auxiliary jack with the plug connected.

NOTE:
- Insert the plug to the auxiliary jack securely.

- Insert or remove the plug with the plug perpendicular to the auxiliary jack hole.

- Insert or remove the plug by holding its base.

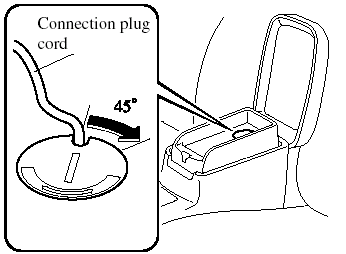

6. Make sure the connection plug cord is


6. Make sure the connection plug cord is running through the cap slot; reinstall the cap and turn it clockwise (about 45° to the opened position).

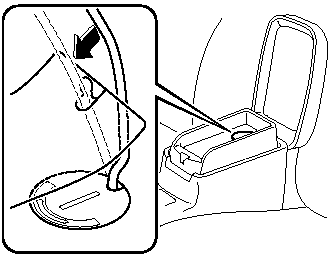

7. Pass the connection plug cord through


7. Pass the connection plug cord through the slit in the tray mat and then set the tray mat in place.

To operate the portable audio unit

1. Turn the ignition switch to the ACC or ON position.

2. Press the power/volume dial to turn the audio system on.

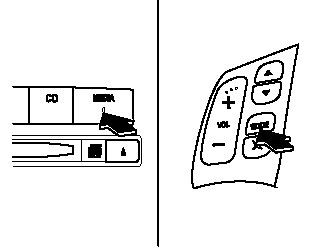

3. Press the MEDIA button ()


3. Press the MEDIA button (of)
of
the audio unit or the mode switch (to) of the audio control switch
to
change to the AUX mode.

NOTE:
- Set the volume of the portable audio unit to the maximum within the range that the sound does not become distorted, then adjust the volume using the power/volume dial of the audio unit or the volume button (+,-) of the audio control switch.

- If the connection plug is pulled out from the auxiliary jack while in AUX mode, noise may occur.
