Moonroof

* Some models.

The moonroof can be opened or closed


The moonroof can be opened or closed electrically only when the ignition switch is in the ON position.

WARNING:
Do not let passengers stand up or extend part of their body through the open moonroof while the vehicle is moving:
Extending the head, arms, or other parts of the body through the moonroof is dangerous. The head or arms could hit something while the vehicle is moving. This could cause serious injury or death.

Make sure the opening is clear before closing the moonroof:
A closing moonroof is dangerous. The hands, head, or even neck of a person ―especially a child― could be caught in it as it closes, causing serious injury or even death.

NOTE:
Before washing your Mazda, make sure the moonroof is completely closed so that water does not get inside the cabin area. After washing your Mazda or after it rains, wipe the water off the moonroof before operating it to avoid water penetration which could cause rust and water damage to your headliner.

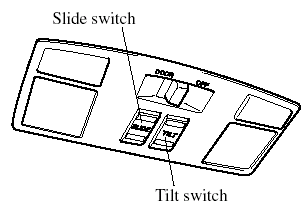

Tilt Operation

The rear of the moonroof can be tilted


The rear of the moonroof can be tilted open to provide more ventilation.

To fully tilt automatically, momentarily press the rear of the tilt switch.

To stop tilting partway, press any part of the tilt or slide switch.

To close to the desired position, press the front of the tilt or slide switch.

Slide Operation

To fully open automatically, momentarily


To fully open automatically, momentarily press the rear of the slide switch.

To stop sliding partway, press any part of the tilt or slide switch.

To close to the desired position, press the front of the tilt or slide switch.

Power Moonroof Re-set Procedure

If the battery is disconnected, the moonroof may not operate correctly. The moonroof will not operate correctly until it is re-set.Carry out the following procedure to re-set the moonroof and resume operation:
1. Turn the ignition switch to the ON position.

2. Press the rear of the tilt switch while the rear of the moonroof tilts open to the fully open position. The moonroof then closes a little.

NOTE:
If the re-set procedure is performed while the moonroof is in the slide position (partially open) it closes before the rear tilts opens.

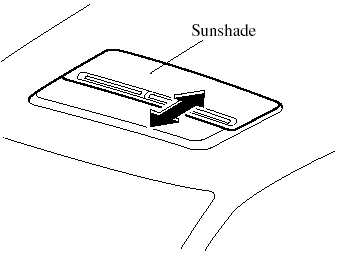

Sunshade

The sunshade can be opened and closed


The sunshade can be opened and closed by hand.

The sunshade opens automatically when the moonroof is opened, but must be closed by hand.

CAUTION:
avoid damaging the sunshade, do The sunshade does not tilt. To
avoid damaging the sunshade, do not push up on it.

the moonroof is opening. Trying to Do not close the sunshade while
the moonroof is opening. Trying to force the sunshade closed could damage it.
