Windshield Wipers

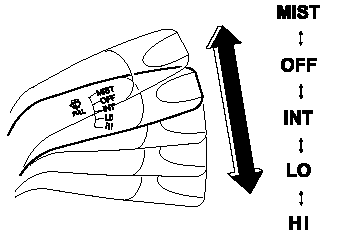

Turn the wipers on by pulling the lever


Turn the wipers on by pulling the lever down.

INT ― Intermittent LO ― Low speed
HI ― High speed
For a single wiping cycle, push the lever up to MIST.

MIST ― Mist

Windshield Washer

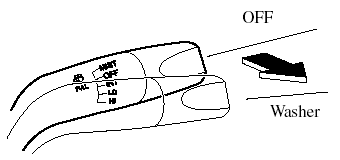

Pull the lever toward you and hold it to


Pull the lever toward you and hold it to spray washer fluid.

NOTE:
With the wiper lever in the OFF or INT position, the wipers will operate continuously until the lever is released.

If the washer does not work, inspect the fluid level. If it's normal, consult an Authorized Mazda Dealer.
