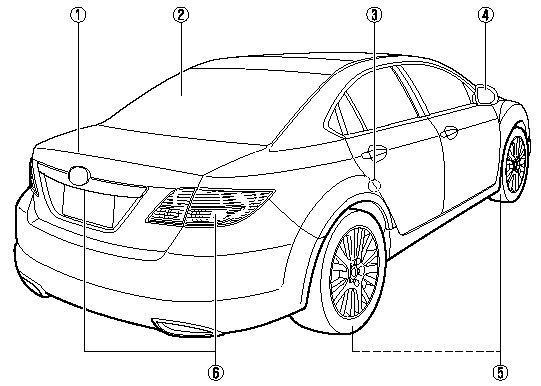

Rear
1. Trunk lid.
2. Rear window antenna.
3. Child safety lock.
4. Outside mirror.
5. Tires.
6. Light bulbs.
