Information Display

Information Display Functions


Information Display Functions

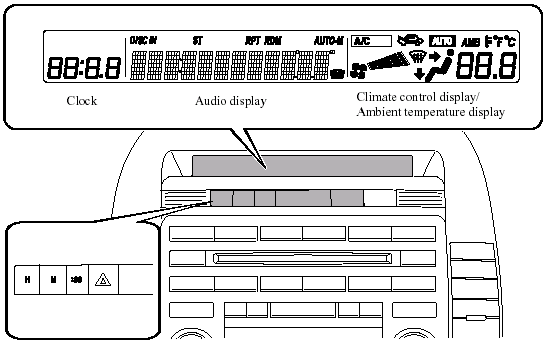

The information display has the following functions: - Clock.

- Ambient Temperature Display (Outside Temperature Display, Fully Automatic Type Air
Conditioning System).

- Climate Control Display (Fully Automatic Type Air Conditioning System).

- Audio Display.

Clock
Clock

Time setting

1. Turn the ignition switch to the ACC or ON position.

2. Adjust the time using the time setting buttons ( ).,
The hours advance while the time).


The hours advance while the time setting button (The minutes advance while the time) is pressed.


The minutes advance while the time setting button (Time resetting) is pressed.


Time resetting

1. Turn the ignition switch to the ACC or ON position.

2. Press and hold the :00 button for 1.5 seconds or more. The displayed time flashes.

3. When the button is released, the time will be reset as follows:

(Example).

12:01 - 12:29→12:00.

12:30 - 12:59→1:00.

NOTE.

When the :00 button is released, the seconds will start at 00.

Switching between 12 and 24-hour clock time

1. Turn the ignition switch to the ACC or ON position.

2. Press both time setting buttons ( ),
simultaneously for 1.5 seconds or)
simultaneously for 1.5 seconds or more.

3. 12h or 24h is displayed.

4. The selected clock time will be displayed within three seconds.

Ambient Temperature Display (Fully Automatic Type)
Ambient Temperature Display (Fully Automatic Type)

When the ignition switch is in the ON position, press the AMB switch to display the ambient temperature.

NOTE.

- Under the following conditions, the ambient temperature display may differ from the actual ambient temperature depending on the surroundings and vehicle conditions:     - Significantly cold or hot temperatures.

    - Sudden changes in ambient temperature.

    - The vehicle is parked.

    - l The vehicle is driven at low speeds.

- Press the AMB switch a few seconds or more to switch the display from Fahrenheit to Centigrade or vice versa.

- Press the AMB switch again to switch the display from ambient temperature to the temperature set for the air conditioner.

Climate Control Display (Fully Automatic Type)

The climate control system status is displayed. To operate the climate control system, refer to Climate Control System.

Audio Display

The audio system status is displayed. To operate the audio system, refer to Audio System.
