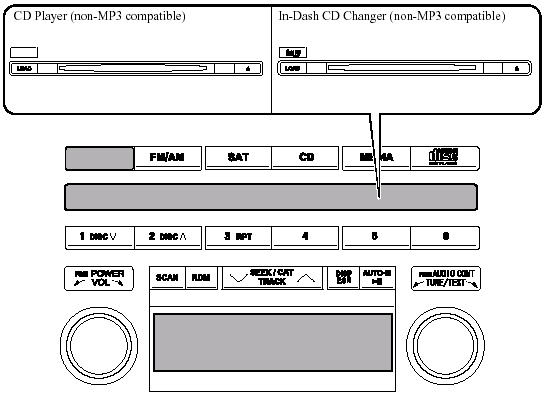

Audio Set

Audio information is displayed on the information display.

Power/Volume/Sound Controls
Power/Volume/Sound Controls Operating the Radio
Operating the Compact Disc (CD) Player Operating the In-Dash CD Changer Operating the Auxiliary jack Error Indications

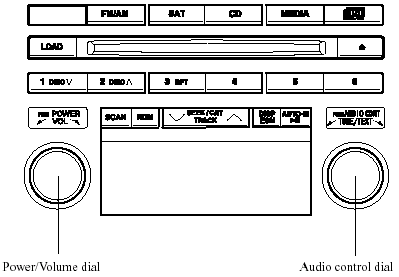

Power/Volume/Sound Controls

Power ON/OFF


Power ON/OFF

Turn the ignition switch to the ACC or ON position.

Press the power/volume dial to turn the audio system on.

Press the power/volume dial again to turn the audio system off.

NOTE.

To prevent the battery from being discharged, do not leave the audio system on for a long period of time when the engine is not running.

Volume adjustment

To adjust the volume, turn the power/ volume dial.

Turn the power/volume dial to the right to increase volume, to the left to decrease it.

Audio sound adjustment

1. Press the audio control dial to select the function. The selected function will be indicated.

* Depending on the mode selected, the


* Depending on the mode selected, the indication changes.

2. Turn the audio control dial to adjust the selected functions as follows:

NOTE.


NOTE.

About 5 seconds after selecting any mode, the volume function will be automatically selected.

To reset bass, treble, fade, and balance, press the audio control dial for 2 seconds. The unit will beep and CLEAR will be displayed.

Automatic Level Control (ALC)

The automatic level control is a feature that automatically adjusts audio volume and sound quality according to the vehicle speed.

The volume increases in accordance with the increase in vehicle speed, and decreases as vehicle speed decreases.

CD Player type

Select the desired ALC mode.

Turn the audio control dial to select ALC


Turn the audio control dial to select ALC OFF or ALC LEVEL1 - 3 modes. The selected mode will be indicated.

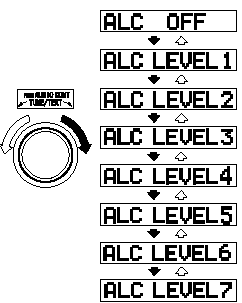

In-Dash CD Changer type


In-Dash CD Changer type

Select the desired ALC mode.

Turn the audio control dial to select ALC


Turn the audio control dial to select ALC OFF or ALC LEVEL1 - 7 modes. The selected mode will be indicated.

BEEP setting


BEEP setting

The beep-sound when operating the audio system can be set on or off.

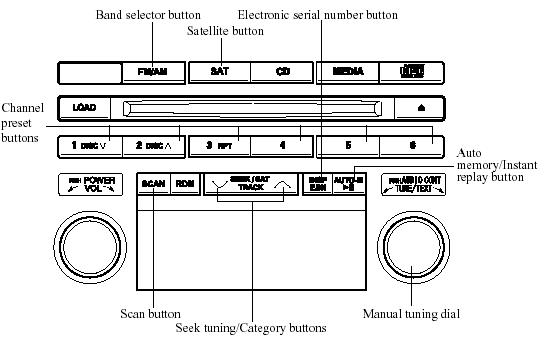

Operating the Radio

Radio ON


Radio ON

Press a band selector button (turn the radio on.) to
turn the radio on.

Band selection

Successively pressing the band selector button (follows: FM1→FM2→AM.) switches the bands as
follows: FM1→FM2→AM.

The selected mode will be indicated. If FM stereo is being received, ST will be displayed.

NOTE.

If the FM broadcast signal becomes weak, reception automatically changes from STEREO to MONO for reduced noise, and the ST indicator will go out.

Tuning

The radio has the following tuning methods: Manual, Seek, Scan, Preset channel, and Auto memory tuning. The easiest way to tune stations is to set them on preset channels.

NOTE.

If the power supply is interrupted (fuse blows or the battery is disconnected), the preset channels will be erased.

Manual tuning

Turning the manual tuning dial will change the frequency higher or lower.

Seek tuning

Pressing the seek tuning/category button ( ) will cause the tuner to seek a,
higher or lower frequency automatically.) will cause the tuner to seek a
higher or lower frequency automatically.

NOTE.

If you continue to press and hold the button, the frequency will continue changing without stopping.

Scan tuning

Press the scan button (automatically sample strong stations.) to
automatically sample strong stations.

Scanning stops at each station for about 5 seconds. To hold a station, press the scan button (Preset channel tuning) again during this interval.


Preset channel tuning

The 6 preset channels can be used to store 6 AM and 12 FM stations.

1. To set a channel first select AM, FM1, or FM2. Tune to the desired station.

2. Depress a channel preset button for about 2 seconds until a beep sound is heard. The preset channel number and station frequency will be displayed.

The station is now held in the memory.

3. Repeat this operation for the other stations and bands you want to store.

To tune one in the memory, select AM, FM1, or FM2 and then press its channel preset button. The station frequency and the channel number will be displayed.

NOTE.

If the power supply is interrupted (fuse blows or the battery is disconnected), the preset channels will be erased.

Auto memory tuning

This is especially useful when driving in an area where the local stations are not known. Additional AM/FM stations can be stored without disturbing the previously set channels.

Press and hold the auto memory/instant replay button (seconds until a beep sound is heard; the) for about 2
seconds until a beep sound is heard; the system will automatically scan and temporarily store up to 6 stations with the strongest frequencies in each selected band in that area.

After scanning is completed, the station with the strongest frequency will be tuned and its frequency displayed.

Press and release the auto memory/instant replay button (from the auto-stored stations. One stored) to recall stations
from the auto-stored stations. One stored station will be selected each time; its frequency and channel number will be displayed.

NOTE.

If no stations can be tuned after scanning operations, A will be displayed.

SATELLITE RADIO (SAT)

Vehicles equipped with the separately purchased SIRIUS digital satellite radio unit have the ability to receive channels of digital quality programming coast to coast via satellite. For information on use, read the Satellite Radio Kit manual accompanying the SIRIUS digital satellite radio unit. A subscription to SIRIUS digital satellite radio service is required (available in the U.S. - Except Alaska and Hawaii) to enable this feature once the separately purchased SIRIUS digital satellite radio unit has been installed. For subscription and channel information, or for digital satellite radio technical issues, contact SIRIUS directly at: - Web: www.siriusradio.com.

- Phone (24 hrs/day, 7 days/week): 888- 539-SIRI (7474).

- E-mail: customercare@sirius-radio.com.

- Mailing Address: Sirius Satellite Radio 1221 Avenue Of The Americas New York, NY 10020
Attention: Customer Care

Include your Sirius Radio ESN (Electronic Serial Number) when subscribing or requesting technical assistance. See the Satellite Radio Kit manual accompanying the SIRIUS unit for complete satellite radio activation procedures and information on how to display the ESN#.

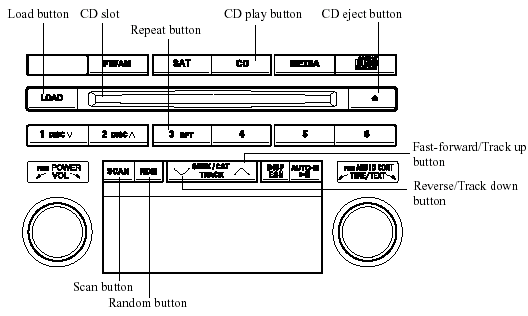

Operating the Compact Disc (CD) Player


Type

Playable data
Music CD player (non-MP3 compatible) Music data (CD-DA)

Inserting the CD

Insert the CD into the slot, label-side up.

The auto-loading mechanism will set the CD and begin play.

NOTE.

There will be a short lapse before play begins while the player reads the digital signals on the CD.

Ejecting the CD

Press the CD eject button (the) to eject
the
CD.

Playback

Press the CD play button (play when a CD is in the unit.) to start
play when a CD is in the unit.

If a CD is not in the unit when the CD play button (will flash on and off.) is pressed, NO DISC
will flash on and off.

NOTE.

When the load button (CD will load and play even if the CD eject) is pressed, the
CD will load and play even if the CD eject button (

pressed.) had been previously
pressed.

Fast-forward/Reverse

Press and hold the fast-forward button (speed.) to advance through a track at high
speed.

Press and hold the reverse button (reverse through a track at high speed.) to
reverse through a track at high speed.

Track search

Press the track up button (skip) once to
skip
forward to the beginning of the next track.

Press the track down button (skip back to the beginning of the current) once to
skip back to the beginning of the current track.

Music scan

This feature helps to find a program by playing about the first 10 seconds of each track.

Press the scan button (playback to start the scan play operation) during
playback to start the scan play operation (the track number will flash).

Press the scan button (cancel scan playback.) again to
cancel scan playback.

NOTE.

If the unit is left in scan, normal playback will resume where scan was selected.

Repeat playback

This feature makes it possible to listen to a selection repeatedly.

Press the repeat button (playback. The current selection will be) during
playback. The current selection will be repeated (RPT will be displayed).

Press the repeat button (to cancel repeat playback.) once again
to cancel repeat playback.

Random playback

This feature allows the CD player to randomly select the order of the songs.

Press the random button (playback. The next selection will be) during
playback. The next selection will be randomly selected (RDM will be displayed).

Press the random button (again to cancel random playback.) once
again to cancel random playback.

Message display

If CHECK CD is displayed, it means that there is some CD malfunction. Check the CD for damage, dirt, or smudges, and then properly reinsert. If the message appears again, take the unit to an Authorized Mazda Dealer for service.

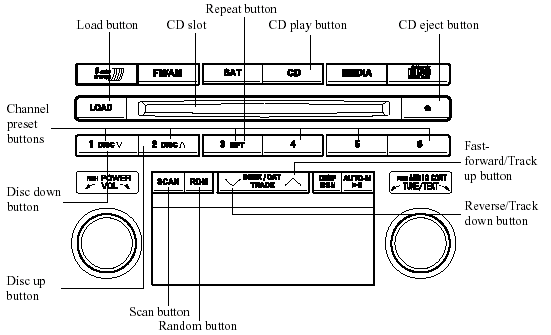

Operating the In-Dash CD Changer


Type

Playable data

Music CD player (non-MP3 compatible) Music data (CD-DA)

Inserting the CD

The CD must be label-side up when inserting. The auto-loading mechanism will set the CD and begin play.

The disc number and the track number will be displayed.

NOTE.

The CD will begin playback automatically after insertion.

A CD cannot be inserted while the display reads WAIT. A beeping sound can be heard during this waiting time.

There will be a short lapse before play begins while the player reads the digital signals on the CD.

Normal insertion

1. Press the load button (2. When IN is displayed, insert the CD.

).


2. When IN is displayed, insert the CD.

Inserting CDs into desired tray number

1. Press and hold the load button (for about 2 seconds until a beep sound

)
for about 2 seconds until a beep sound is heard.

2. Press the channel preset button for the desired tray number while WAIT is displayed.

3. When IN is displayed, insert the CD.

NOTE.

The CD cannot be inserted to the desired tray number if the number is already occupied.

Multiple insertion

1. Press and hold the load button (for about 2 seconds until a beep sound

)
for about 2 seconds until a beep sound is heard.

2. When IN is displayed, insert the CD.

3. When IN is displayed again, insert the next CD.

NOTE.

The first-inserted CD will be played automatically when:
- No other CD is inserted within 15 seconds after IN is displayed.

- The CD trays are full.

Displaying the CD-inserted tray number

When you want to know the number for a CD-inserted tray, press the display button (for 5 seconds.). The tray number will be displayed
for 5 seconds.

Ejecting the CD

Normal ejection

1. Press the CD eject button (disc number and DISC OUT will be). The
disc number and DISC OUT will be displayed.

2. Pull out the CD.

NOTE.

When the CD is ejected during play, the next CD will be played automatically.

Ejecting CDs from desired tray number

1. Press and hold the CD eject button (for about 2 seconds until a beep sound)
for about 2 seconds until a beep sound is heard.

The DISC OUT display flashes.

2. Press the channel preset button for the desired CD number for less than 5 seconds after the beep sound is heard.

3. Pull out the CD.

Multiple ejection

1. Press and hold the CD eject button (for about 2 seconds until a beep sound)
for about 2 seconds until a beep sound is heard.

The DISC OUT display flashes.

2. Press the CD eject button (for less than 5 seconds after the beep) again
for less than 5 seconds after the beep sound is heard.

NOTE.

If the button is not pressed and about 5 seconds have elapsed while DISC OUT is flashing, CDs are automatically ejected.

3. Pull out the CD, then the next CD will be ejected.

NOTE.

- CDs will be ejected starting with the one with the lowest number.

- All CDs in the tray will be ejected continuously.

- CDs can be ejected when the ignition switch is off. Press and hold the CD eject button (

all) for about 2 seconds and
all
CDs will eject.

Playback

Press the CD play button (play when a CD is in the unit.) to start
play when a CD is in the unit.

If a CD is not in the unit when the CD play button (will flash on and off.) is pressed, NO DISC
will flash on and off.

Fast-forward/Reverse

Press and hold the fast-forward button (speed.) to advance through a track at high
speed.

Press and hold the reverse button (reverse through a track at high speed.) to
reverse through a track at high speed.

Track search

Press the track up button (skip) once to
skip
forward to the beginning of the next track.

Press the track down button (skip back to the beginning of the current) once to
skip back to the beginning of the current track.

Disc search

To change the disc, press the DISC button () during playback. or
Music scan) during playback.


Music scan

This feature helps to find a program by playing about the first 10 seconds of each track.

Press the scan button (playback to start the scan play operation) during
playback to start the scan play operation (the track number will flash).

Press the scan button (cancel scan playback.) again to
cancel scan playback.

NOTE.

If the unit is left in scan, normal playback will resume where scan was selected.

Repeat playback

1. Press the repeat button (playback to play the current track) during
playback to play the current track repeatedly. RPT is displayed.

2. Press the button again to cancel the repeat playback.

Random playback

Tracks are randomly selected and played.

1. Press the random button (playback to play the tracks in the CD) during
playback to play the tracks in the CD randomly. RDM is displayed.

2. Press the button again to cancel the random playback.

Message display

If CHECK CD is displayed, it means that there is some CD malfunction. Check the CD for damage, dirt, or smudges, and then properly reinsert. If the message appears again, take the unit to an Authorized Mazda Dealer for service.

Operating the Auxiliary jack

You can connect portable audio units or similar products on the market to the auxiliary jack to listen to music or audio over the vehicle's speakers, refer to Auxiliary Input.

Error Indications

If you see an error indication on the display, find the cause in the chart. If you cannot clear
the error indication, take the vehicle to an Authorized Mazda Dealer.

Indication

Cause

Solution

CHECK CD CD is inserted upside down Insert the CD properly. If the error indication does not disappear, consult an Authorized Mazda Dealer
CD is defective Insert another CD properly. If the error indication does not disappear, consult an Authorized Mazda Dealer
    See also:

    Door Locks
    WARNING. Always take all children and pets with you or leave a responsible person with them: Leaving a child or a pet unattended in a parked vehicle is dangerous. In hot weather, temperatures in ...

    Powertrains for all driving experiences
    The powertrains combine Mazda's typical Zoom-Zoom driving experience with excellent environmental performance to provide exhilarating driving. They transmit just the right amount of G force that p ...

    Transmissions
    The 2.3-litre MZR petrol comes standard with a new five-speed manual transmission that employs multi-cone synchronizers and a new cable shift system, which reduces shift effort and provides for sh ...
