Dashboard and Interior Overview

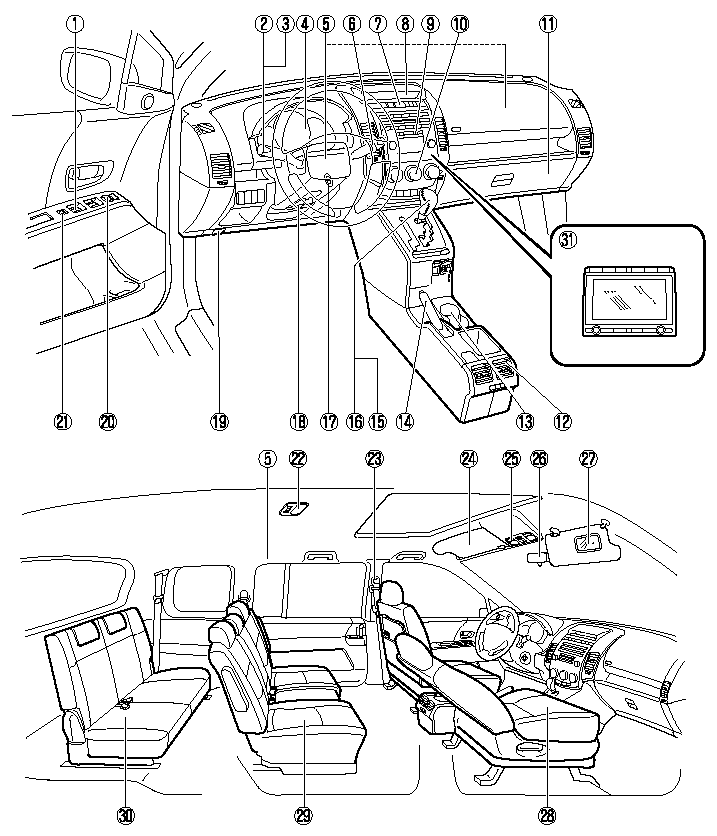

Dashboard and Interior Overview

1 - Power window switches 2 - Lighting control
3 - Turn and lane-change signals 4 - Instrument cluster
5 - Air bags
6 - Wiper and washer lever 7 - Hazard warning flasher switch 8 - Information display
9 - Audio system
10 - Climate control system 11 - Glove box
12 - Rear ventilation system 13 - Cup holder
14 - Parking brake
15 - MT shift lever
16 - AT shift lever (Sport AT) 17 - Ignition switch
18 - Steering column release lever 19 - Hood release handle 20 - Outside mirror switch 21 - Power window lock switch 22 - Interior light
23 - Seat belts
24 - Sunvisor
25 - Map light
26 - Rearview mirror
27 - Vanity mirror
28 - Front seats
29 - Second-row seat
30 - Third-row seat
31 - Navigation system (if equipped)
