Service Publications

Factory-authorized Mazda service publications are available for owners who


Factory-authorized Mazda service publications are available for owners who wish to do
some of their own maintenance and repair.

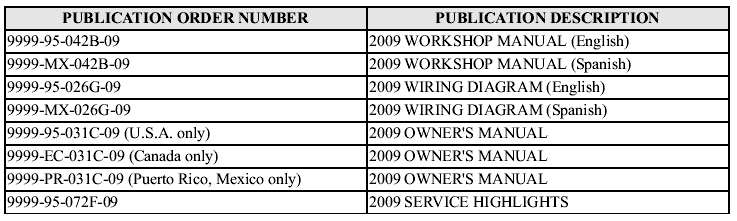

When requesting any of our publications through an Authorized Mazda Dealer, refer to the
chart below.

If they don't have what you need in stock, they can order it for you.

WORKSHOP MANUAL:

Covers recommended maintenance and repair procedures of the drive train, body and
chassis.

WIRING DIAGRAM:

Provides electrical schematics as well as component location for the entire electrical
system.

OWNER'S MANUAL:

This booklet contains information regarding the proper care and operation of your vehicle.

This is not a technician's manual.

SERVICE HIGHLIGHTS:

Provides description and operation of the many systems of your Mazda.
