Light Bulbs


WARNING:


WARNING:
Do not replace the xenon fusion bulbs yourself:
Replacing the xenon fusion bulbs yourself is dangerous. Because the xenon fusion bulbs require high voltage, you could receive an electric shock if the bulbs are handled incorrectly. Consult an Authorized Mazda Dealer when the replacement is necessary.

Never touch the glass portion of a halogen bulb with your bare hands and always wear eye protection when handling or working around the bulbs: When a halogen bulb breaks, it is dangerous. These bulbs contain pressurized gas. If one is broken, it will explode and serious injuries could be caused by the flying glass.

If the glass portion is touched with bare hands, body oil could cause the bulb to overheat and explode when lit.

Always keep halogen bulbs out of the reach of children:
Playing with a halogen bulb is dangerous. Serious injuries could be caused by dropping a halogen bulb or breaking it some other way.

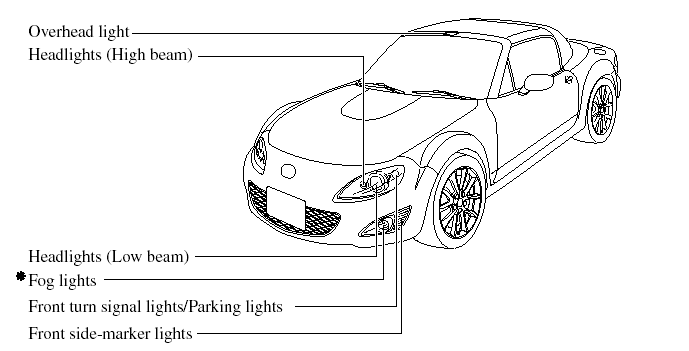

Replacing Exterior Light Bulbs

NOTE:
- To replace the bulb, contact an Authorized Mazda Dealer.

- If the halogen bulb is accidentally touched, it should be cleaned with rubbing alcohol before being used.

- Use the protective cover and carton for the replacement bulb to dispose of the old bulb promptly and out of the reach of children.

Replacing a headlight bulbs

High-beam bulbs

1. Make sure the ignition is switched off,


1. Make sure the ignition is switched off, and the headlight switch is off.

2. Lift the hood.

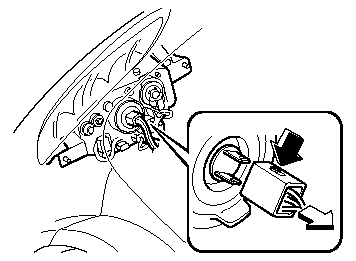

3. Disconnect the electrical connector from the bulb by pressing the tab on the connector with your finger and pulling the connector downward.

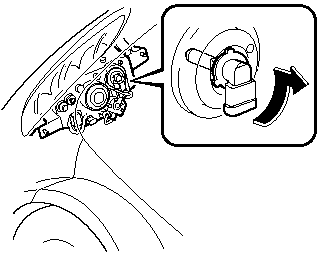

4. Turn the socket and bulb assembly to


4. Turn the socket and bulb assembly to remove it. Carefully remove the bulb from its socket in the reflector by gently pulling it straight backward out of the socket.

5. Install the new bulb in the reverse order of the removal procedure.

Low-beam bulbs

(Xenon fusion bulbs).


(Xenon fusion bulbs).

You cannot replace the low beam bulbs by yourself. The bulbs must be replaced at an Authorized Mazda Dealer.

(Halogen bulbs).

1. If you are changing the right bulb, start the engine, turn the steering wheel all the way to the right, and turn off engine. If you are changing the left bulb, turn the steering wheel to the left.

2. Make sure the headlight switch is off.

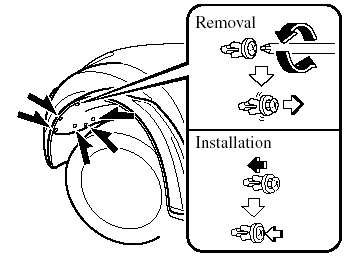

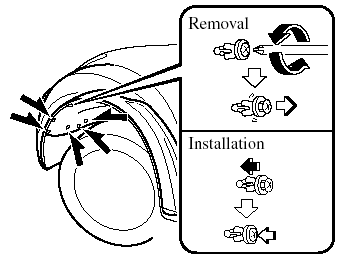

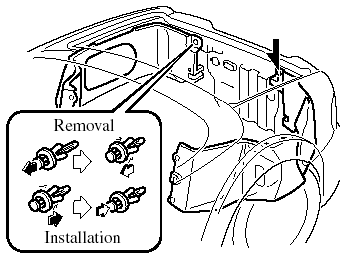

3. Turn the center section of the plastic retainer counterclockwise and remove the retainers and partially peel back the mudguard.

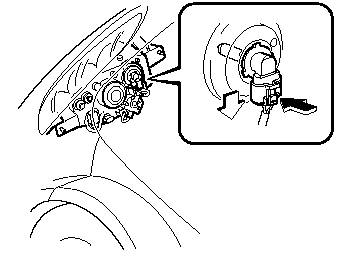

4. Disconnect the electrical connector


4. Disconnect the electrical connector from the bulb by pressing the tab on the connector with your finger and pulling the connector rear.

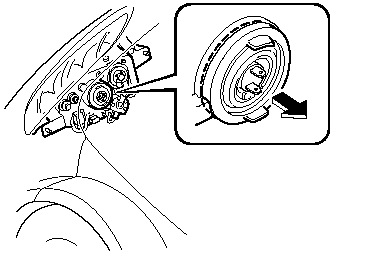

5. Pull off the sealing cover.


5. Pull off the sealing cover.

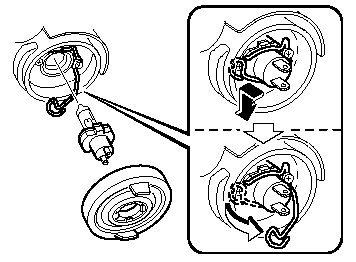

6. Unhook the bulb retaining spring.


6. Unhook the bulb retaining spring.

7. Remove the adapter.


7. Remove the adapter.

8. Install the new bulb in the reverse order of the removal procedure.

Front fog light bulbs

1. Make sure the ignition is switched off,


1. Make sure the ignition is switched off, and the headlight switch is off.

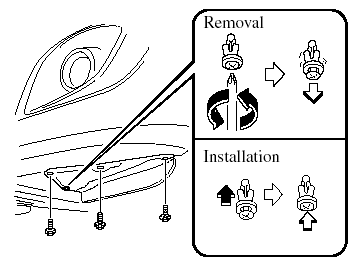

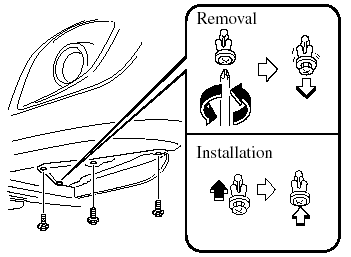

2. Turn the screws and the center section of the plastic retainers counterclockwise and remove them, then partially peel back the mudguard.

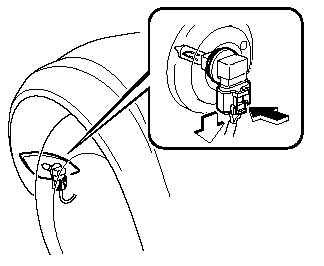

3. Disconnect the electrical connector


3. Disconnect the electrical connector from the bulb by pressing the tab on the connector with your finger and pulling the connector downward.

4. Turn the socket and bulb assembly to


4. Turn the socket and bulb assembly to remove it. Carefully remove the bulb from its socket in the reflector by gently pulling it straight backward out of the socket.

5. Install the new bulb in the reverse order of the removal procedure.

2. Turn the screws and the center section


2. Turn the screws and the center section of the plastic retainers counterclockwise and remove them, then partially peel back the mudguard.

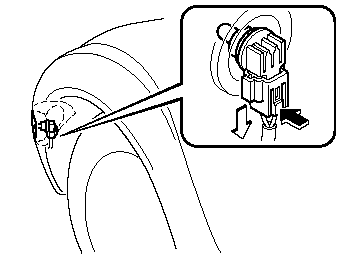

3. Disconnect the electrical connector


3. Disconnect the electrical connector from the bulb by pressing the tab on the connector with your finger and pulling the connector downward.

4. Turn the socket and bulb assembly to


4. Turn the socket and bulb assembly to remove it. Carefully remove the bulb from its socket in the reflector by gently pulling it straight backward out of the socket.



5. Install the new bulb in the reverse order


5. Install the new bulb in the reverse order of the removal procedure.

6. Install the new bulb in the reverse order of removal.

NOTE:
(Replacing front-passenger side lamp bulb).

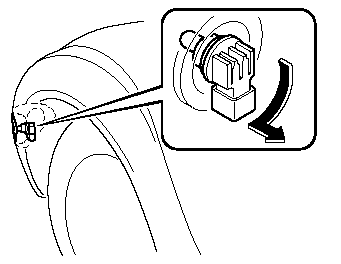

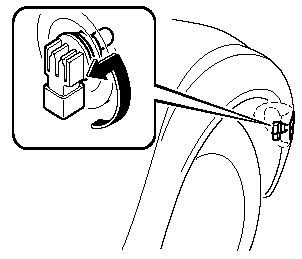

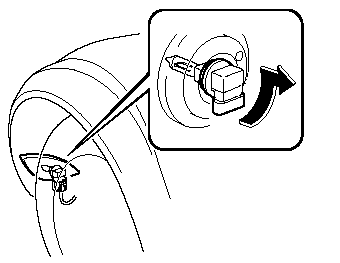

Turn the socket and bulb assembly screw counterclockwise.

Front turn signal lights/Parking lights

1. If you are changing the right bulb, start


1. If you are changing the right bulb, start the engine, turn the steering wheel all the way to the right, and turn off engine. If you are changing the left bulb, turn the steering wheel to the left.

2. Make sure the turn signal switch is off.

3. Turn the center section of the plastic retainer counterclockwise and remove the retainers and partially peel back the mudguard.

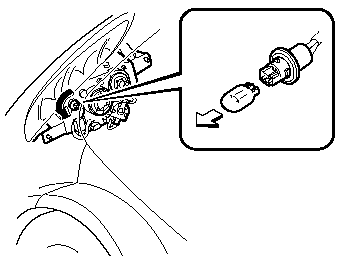

4. Disconnect the bulb from the socket.


4. Disconnect the bulb from the socket.

5. Install the new bulb in the reverse order of the removal procedure.

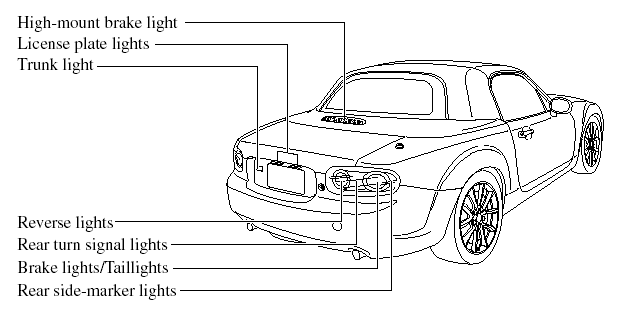

Rear turn signal lights, Reverse lights, Brake lights/Taillights, Rear side marker lights

Rear side marker lights

Due to the complexity and difficulty of the procedure, the LED bulbs should be replaced by an Authorized Mazda Dealer.

Rear turn signal lights, Reverse lights, Brake lights/Taillights

1. Make sure the ignition is switched off


1. Make sure the ignition is switched off and the applicable light switch is off.

2. Lift the trunk.

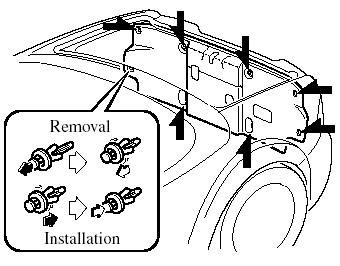

3. Pull the center section of the plastic retainers and remove them, then remove the trunk end trim.

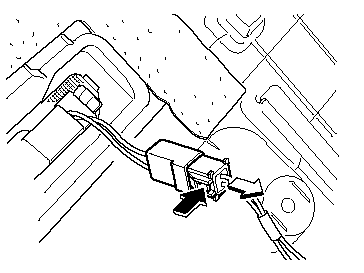

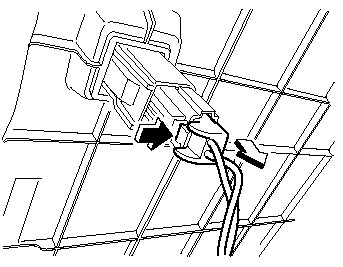

4. Remove the trunk light connector.


4. Remove the trunk light connector.

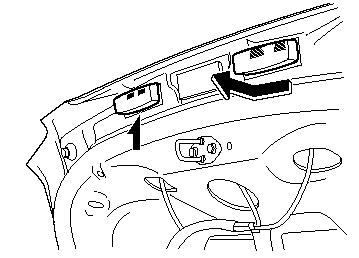

5. Remove the trunk lid release lock-out


5. Remove the trunk lid release lock-out button connector.

6. On the side the bulb is to be replaced,


6. On the side the bulb is to be replaced, pull the center section of the plastic retainers and remove them, then remove the trunk side trim.

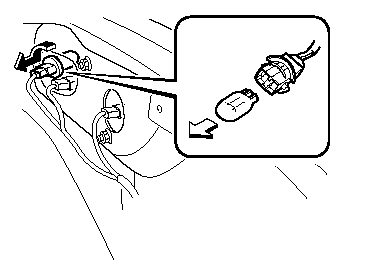

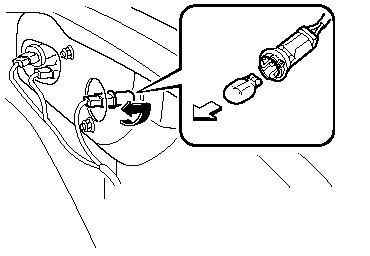

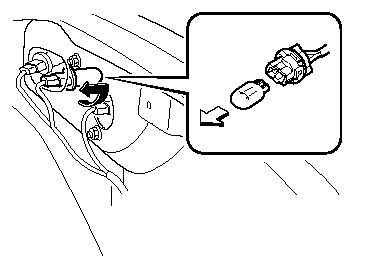

7. Disconnect the bulb from the socket.

Rear turn signal lights


Rear turn signal lights

Reverse lights


Reverse lights

Brake lights/Taillights


Brake lights/Taillights

8. Install the new bulb in the reverse order of the removal procedure.

High-mount brake light

Due to the complexity and difficulty of the procedure, the LED bulbs should be replaced by an Authorized Mazda Dealer.

License plate lights

1. Make sure the ignition is switched off,


1. Make sure the ignition is switched off, and the headlight switch is off.

2. Lift the trunk.

3. Slide the light to the left side of the vehicle and remove it.

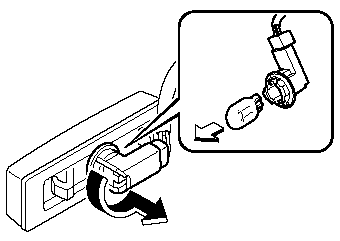

4. Disconnect the bulb from the socket.


4. Disconnect the bulb from the socket.

5. Install the new bulb in the reverse order of the removal procedure.

Replacing Interior Light Bulbs

Overhead light

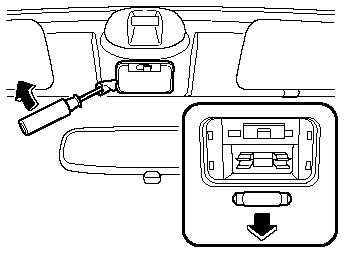

1. Wrap a flathead screwdriver with a soft cloth to prevent damage to the trim and gently insert it in the overhead light as shown in the figure, and then remove the cover.

2. Disconnect the bulb by pulling it out.


2. Disconnect the bulb by pulling it out.

3. Install the new bulb in the reverse order of removal.

Trunk light

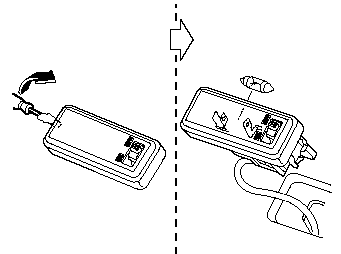

1. Wrap a flathead screwdriver with a soft


1. Wrap a flathead screwdriver with a soft cloth to prevent damage to the trim and gently insert it in the luggage compartment light as shown in the figure, and then remove the luggage compartment light unit.

2. Disconnect the bulb by pulling it out.

3. Install the new bulb in the reverse order of removal.
