Tool Storage

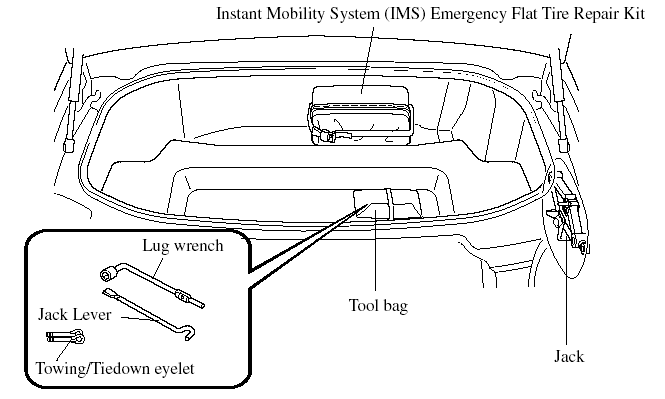

Tools are stored in the locations illustrated in the diagram.

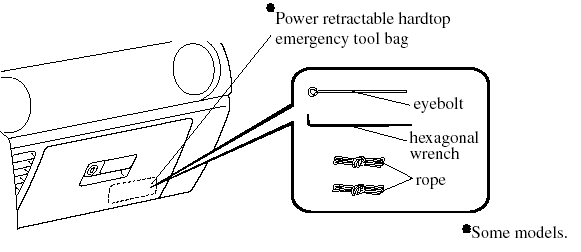

Glove box


Glove box

Jack


Jack

To remove the jack

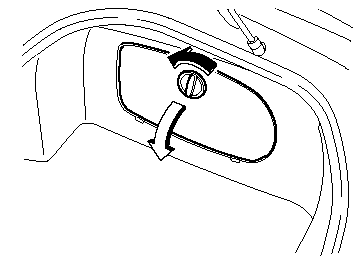

1. Turn the knob and remove the cover.


1. Turn the knob and remove the cover.

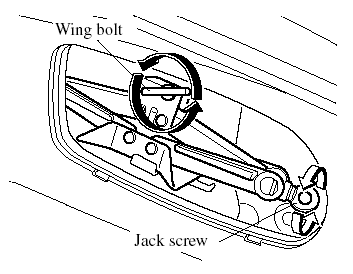

2. Turn the wing bolt and jack screw


2. Turn the wing bolt and jack screw counterclockwise.

To secure the jack

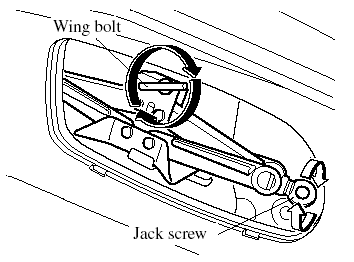

1. Insert the wing bolt into the jack with


1. Insert the wing bolt into the jack with the jack screw pointing back and turn the wing bolt clockwise to temporarily tighten it.

2. Turn the jack screw in the direction shown in the figure.

3. Turn the wing bolt completely to secure the jack.

NOTE:
If the jack is not completely secured, it could rattle while driving. Make sure the jack screw is sufficiently tightened.
