Antenna

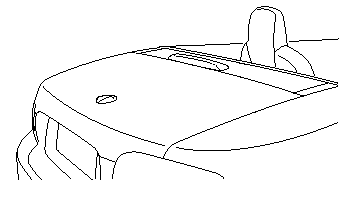

qAM/FM Radio Antenna

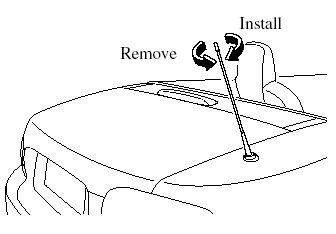

To remove the antenna, turn it counterclockwise.
To install the antenna, turn it clockwise.
Make sure the antenna is securely installed.
CAUTION:
To prevent damage to the antenna,
remove it before entering a car wash
facility or passing beneath a low
overhead clearance.
NOTE:
When leaving your vehicle unattended, we
recommend that you remove the antenna and
store it inside the vehicle.
Satellite Radio Antenna
The satellite radio antenna receives SIRIUS signals.
