Mirrors

qOutside Mirrors

Check the mirror angles before driving.

Mirror type

Flat type (driver's side).

Flat surface mirror.

Convex type (passenger side).

The mirror has single curvature on its surface.

WARNING:
Be sure to look over your shoulder before changing lanes:
Changing lanes without taking into account the actual distance of the vehicle in the convex mirror is dangerous. You could have a serious accident. What you see in the convex mirror is closer than it appears.

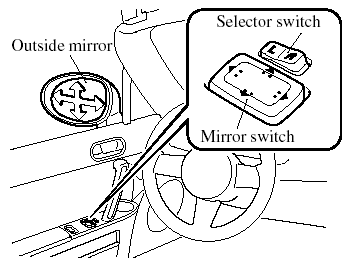

Power mirror

The ignition switch must be in the ACC or ON position.

To adjust:
1. Press the left or right side of the selector switch to choose the left or right side mirror.

2. Depress the mirror switch in the


2. Depress the mirror switch in the appropriate direction.

After adjusting the mirror, lock the control by placing the selector switch in the middle position.

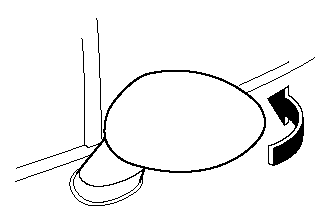

Folding the mirror

Fold the outside mirror rearward until it is


Fold the outside mirror rearward until it is flush with the vehicle.

WARNING:
Always return the outside mirrors to the driving position before you start driving:
Driving with the outside mirrors folded in is dangerous. Your rear view will be restricted, and you could have an accident.

Rearview Mirror

WARNING:
Do not stack cargo or objects higher than the seatbacks:
Cargo stacked higher than the seatbacks is dangerous. It can block your view in the rearview mirror, which might cause you to hit another car when changing lanes.

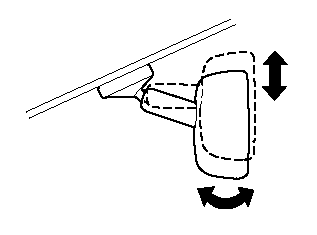

Rearview mirror adjustment

Before driving, adjust the rearview mirror to center on the scene through the rear window.

Manual day/night mirror


Manual day/night mirror

Auto-dimming mirror


Auto-dimming mirror

NOTE:
For the manual day/night mirror, perform the adjustment with the day/night lever in the day position.

Reducing glare from headlights

Manual day/night mirror

Push the day/night lever forward for day


Push the day/night lever forward for day driving. Pull it back to reduce glare of headlights from cars at the rear.

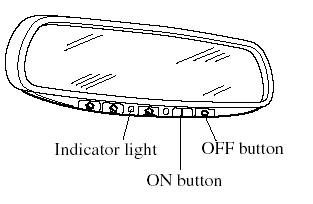

Auto-dimming mirror

The auto-dimming mirror automatically reduces glare of headlights from cars at the rear when the ignition switch is in the ON position.

Press the OFF button ( ) to cancel the


Press the OFF button ( ) to cancel the automatic dimming function. The indicator light will turn off.

To reactivate the automatic dimming function, press the ON button ( ). The indicator light will illuminate.

NOTE:


NOTE:

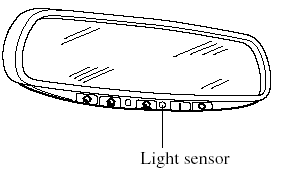

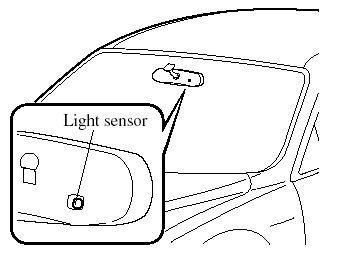

- Do not use glass cleaner or suspend objects on or around the light sensor. Otherwise, light sensor sensitivity will be affected and may not operate normally.

- For information regarding the 3 buttons


- For information regarding the 3 buttons ( , , ) on the auto-dimming mirror, refer to HomeLink Wireless Control System.
