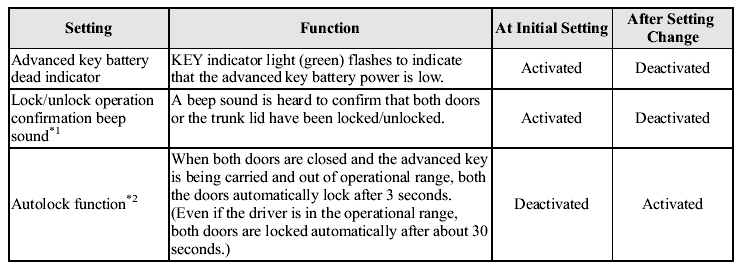

Setting Change (Function Customization)
The following function settings are possible. These settings can only be
changed by an
Authorized Mazda Dealer.
*1: When the autolock function is operating, the warning sound will be heard regardless of the setting.
*2: When the autolock function is enabled, windows will not automatically close. You must close them before leaving vehicle.
