Specifications

Engine

Electrical System


Electrical System

*1 ex factory


*1 ex factory

CAUTION:
When cleaning the iridium plugs, do not use a wire brush. The fine particulate coating on the iridium alloy and platinum tips could be damaged.

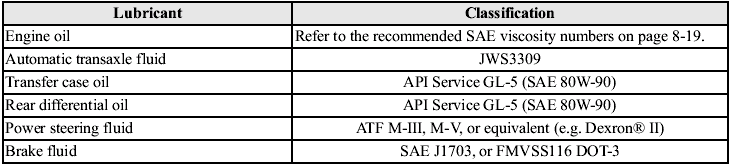

Lubricant Quality

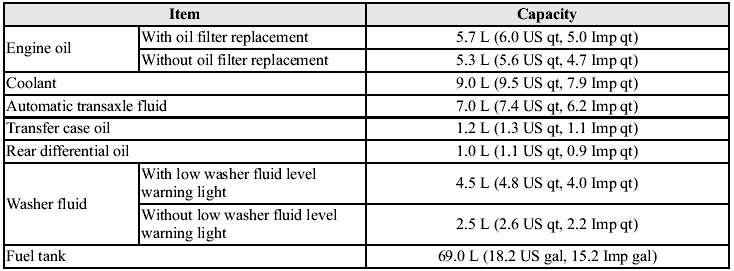

Capacities


Capacities

(Approximate Quantities)

Check oil and fluid levels with dipsticks or reservoir gauges.


Check oil and fluid levels with dipsticks or reservoir gauges.

Dimensions

Weights


Weights

Air Conditioner


Air Conditioner

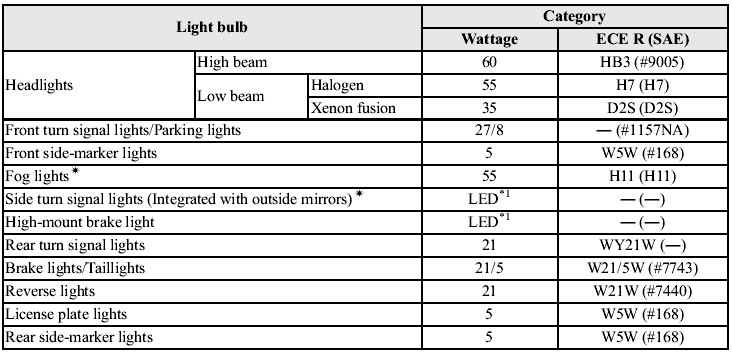

Light Bulbs


Light Bulbs

Exterior light

*1 LED is the abbreviation for Light Emitting Diode.


*1 LED is the abbreviation for Light Emitting Diode.

Interior light

Tires


Tires

NOTE:
The tires have been optimally matched with the chassis of your vehicle.

When replacing tires, Mazda recommends that you replace tires of the same type originally fitted to
your vehicle. For details, contact an Authorized Mazda Dealer.

Check the tire pressure label for tire size and inflation pressure.

Refer to Tire Inflation Pressure.

Standard tire

(Except Mexico)

(Mexico)


(Mexico)

Temporary spare tire


Temporary spare tire

(Except Mexico)

(Mexico)


(Mexico)

Fuses


Fuses

Refer to the fuse rating.
