Rear Window Defroster
The rear window defroster clears frost, fog, and thin ice from the rear window.
The ignition switch must be in the ON position.
Press the switch to turn on the rear window defroster. The rear window defroster operates for about 15 minutes and turns off automatically.
The indicator light illuminates during operation.
To turn off the rear window defroster before the 15 minutes has elapsed, press the switch again.

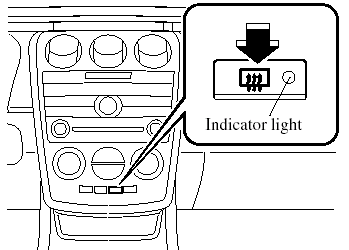

Manual Type Air Conditioning

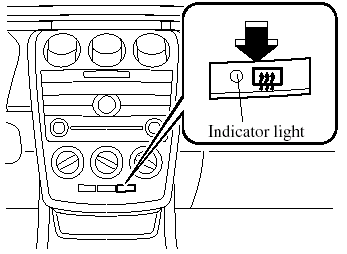

Fully Automatic Type Air Conditioning
CAUTION:
Don't use sharp instruments or
window cleaners with abrasives to
clean the inside of the rear window
surface. They may damage the
defroster grid inside the window.
NOTE:
This defroster is not designed for melting snow.
If there is an accumulation of snow on the rear window, remove it before using the defroster.
Mirror Defroster
To turn on the mirror defrosters, turn the ignition switch to the ON position and push the rear window defroster switch.
