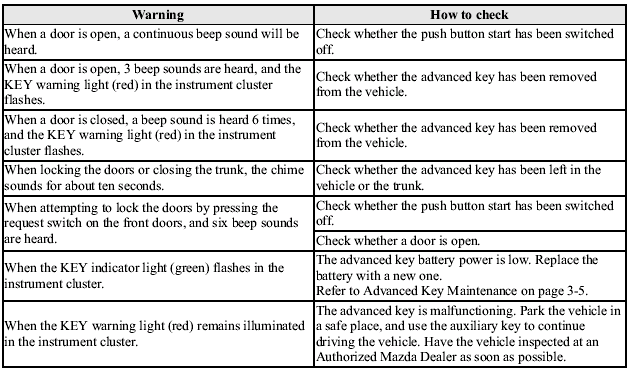

When Warning Indicator/Beep is Activated
Under the following conditions, warning beeps are heard and a
warning/indicator light in
the instrument cluster illuminates to notify the driver of improper operation of
the
advanced key to prevent theft of the vehicle.
See also:
Manual Transmission Operation
Manual Transmission Shift Pattern
The vehicle is equipped with either a 5-
speed or 6-speed manual transmission.
The shift pattern for each is shown above.
Depress the clutch pedal all the way d ...
Warning and Beep Sounds
qSystem Malfunction Warning Beep
If any malfunction occurs in the advanced
keyless function, the KEY warning light
(red) in the instrument cluster illuminates
continuously and beep sounds will be
...
Accessory Sockets
Only use genuine Mazda accessories or
the equivalent requiring no greater than
120 W (DC 12 V, 10 A).
Front
The ignition switch must be in the ACC
or ON position.
With Advanced Key
To use, pr ...
