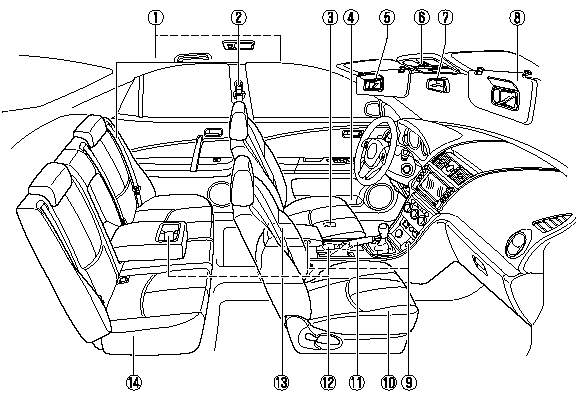

Interior Equipment (View C)
1. SRS air bags.
2. Seat belts.
3. Remote fuel-filler lid release.
4. Bottle holder.
5. Vanity mirror.
6. Overhead lights.
7. Rearview mirror.
8. Sunvisor.
9. Accessory sockets.
10. Front seats.
11. Parking brake.
12. Cup holders.
13. Center console.
14. Rear seat.
