Types of the Climate Control System

Manual type and fully automatic type climate control systems are explained separately.

Check your vehicle's climate control type and read the appropriate pages.

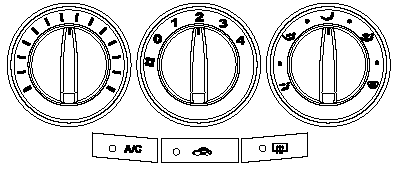

Manual Type
Manual Type

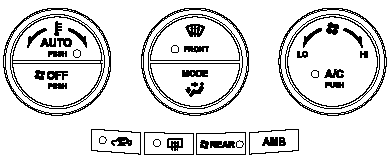

Fully Automatic Type
Fully Automatic Type

Fully Automatic Type
Fully Automatic Type
