Specifications

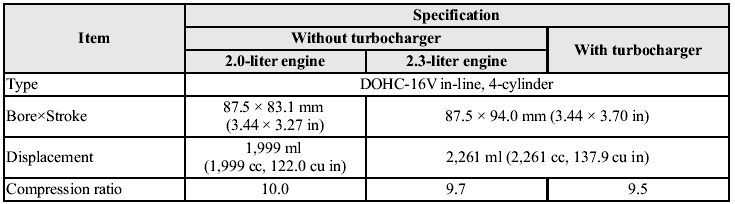

Engine

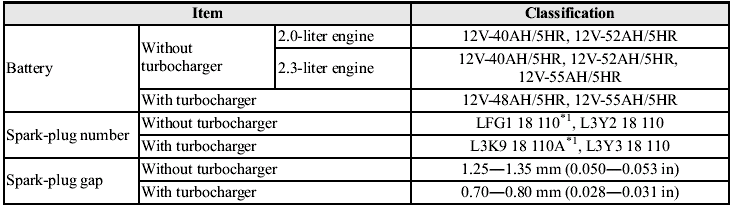

Electrical System


Electrical System

*1 ex factory


*1 ex factory

NOTE:
When cleaning the iridium plugs, do not use a wire brush. The fine particulate coating on the iridium
alloy and platinum tips could be damaged.

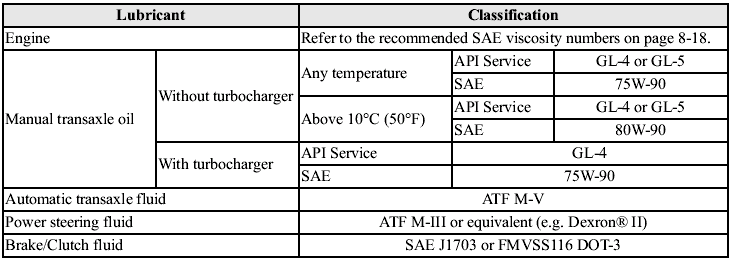

Lubricant Quality

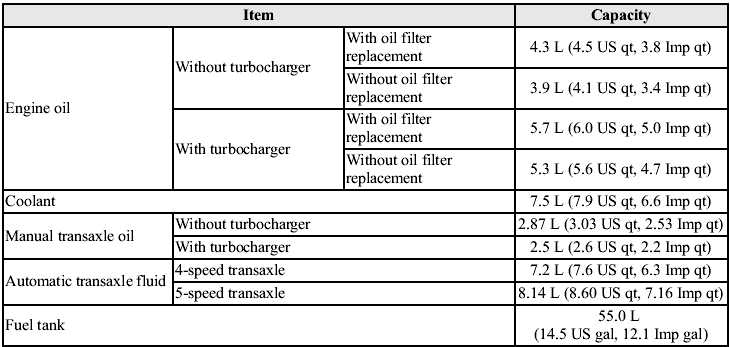

Capacities


Capacities

(Approximate Quantities)

Check oil and fluid levels with dipsticks or reservoir gauges.


Check oil and fluid levels with dipsticks or reservoir gauges.

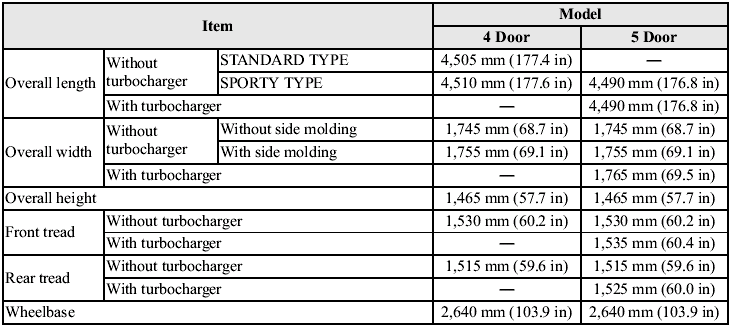

Dimensions

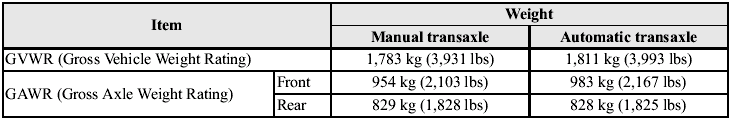

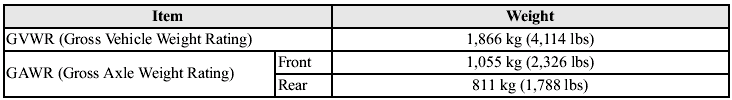

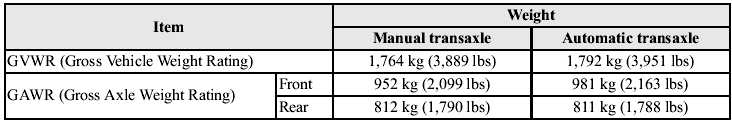

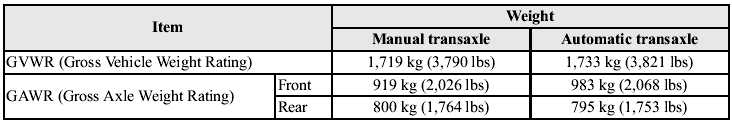

Weights


Weights

4 Door

2.0-liter engine

2.3-liter engine


2.3-liter engine

5 Door


5 Door

Without turbocharger

With turbocharger


With turbocharger

Air Conditioner


Air Conditioner

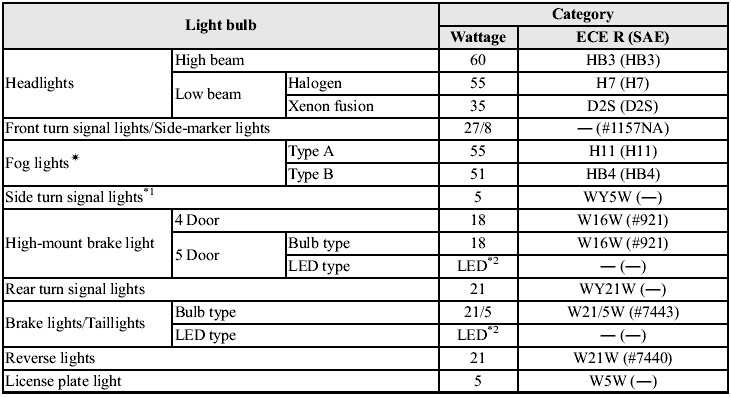

Light Bulbs


Light Bulbs

Exterior light

*1 Bulb replacement is not possible because it is built into the unit.


*1 Bulb replacement is not possible because it is built into the unit. Replace the unit.

*2 LED is the abbreviation for Light Emitting Diode.

Fog lights

Type A
Type A

Type B
Type B

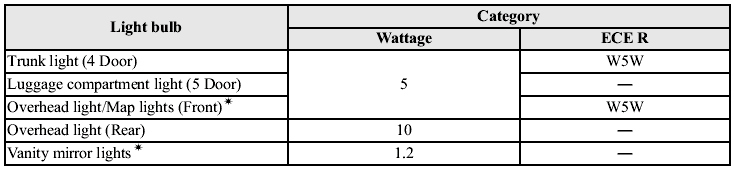

Interior light

Tires


Tires

NOTE:
The tires have been optimally matched with the chassis of your vehicle.

When replacing tires, Mazda recommends that you replace tires of the same type originally fitted to
your vehicle. For details, contact an Authorized Mazda Dealer.

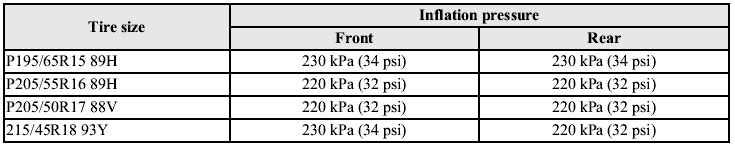

Check the tire pressure label for tire size and inflation pressure.

Refer to Tire Inflation Pressure.

Standard tire

Temporary spare tire


Temporary spare tire

Fuses


Fuses

Refer to the fuse rating.
