Fog Lights

* Some models.

The front fog lights help you to see as well as to be seen.

The headlights must be turned on to turn on the front fog lights.

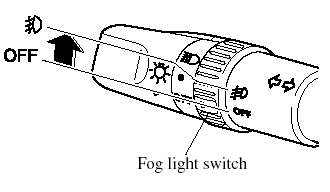

To turn the front fog lights on, rotate the fog light switch to the position.
position.

To turn the front fog lights off, rotate the


To turn the front fog lights off, rotate the fog light switch to the OFF position or turn the headlights off.

NOTE:
- The fog lights will turn off when the headlights are set at high beam.

- (With auto-light control).

If the headlight switch is in the AUTO position, the front fog lights can be turned on when the headlights, the exterior lights and dashboard illumination are on.
