Specifications

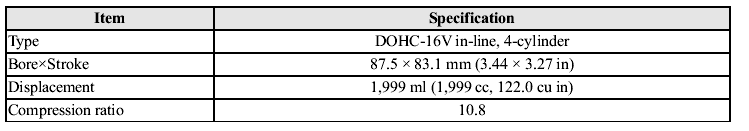

Engine


Engine

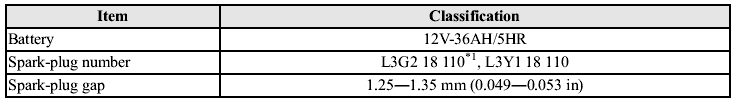

Electrical System


Electrical System

CAUTION:
When cleaning the iridium plugs, do not use a wire brush. The fine particulate coating on the iridium alloy and platinum tips could be damaged.

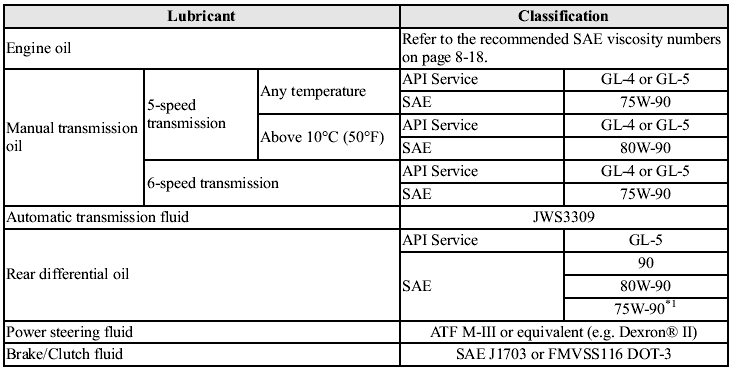

Lubricant Quality


Lubricant Quality

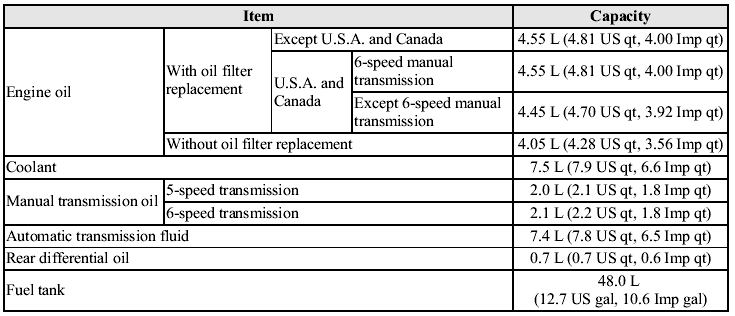

Capacities


Capacities

(Approximate Quantities)

Check oil and fluid levels with dipsticks or reservoir gauges.

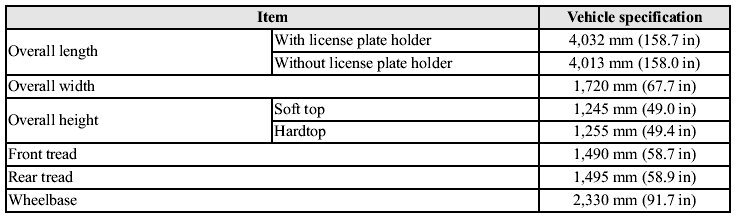

Dimensions


Dimensions

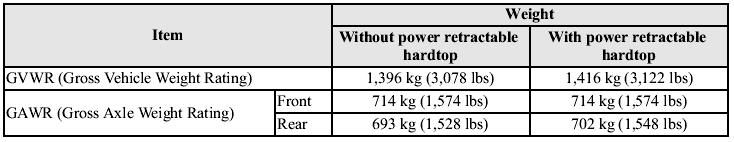

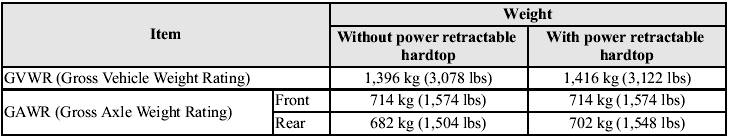

Weights


Weights

(Manual transmission)

(Automatic transmission)


(Automatic transmission)

Air Conditioner


Air Conditioner

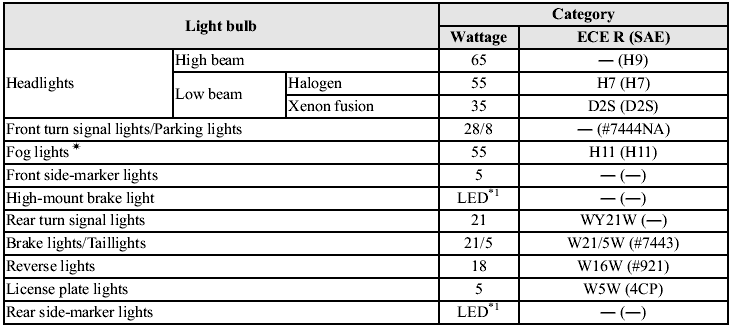

Light Bulbs

Exterior light


Exterior light

*1 LED is the abbreviation for Light Emitting Diode.

Interior light


Interior light

Tires

NOTE:
The tires have been optimally matched with the chassis of your vehicle.

When replacing tires, Mazda recommends that you replace tires of the same type originally fitted to
your vehicle. For details, contact an Authorized Mazda Dealer.

Check the tire pressure label for tire size and inflation pressure. Refer to Tire Inflation
Pressure.

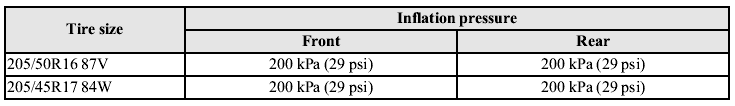

Standard tire


Standard tire

Fuses

Refer to the fuse rating.
