Windshield Wipers

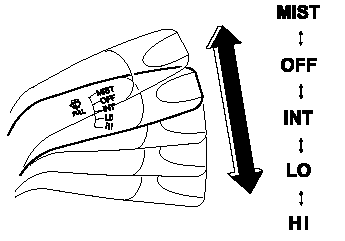

Turn the wipers on by pulling the lever down.
INT ― Intermittent
LO ― Low speed
HI ― High speed
For a single wiping cycle, push the lever
up to MIST.
MIST ― Mist
Windshield Washer

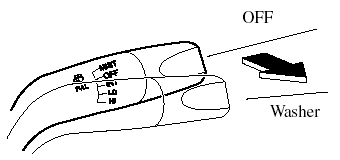

Pull the lever toward you and hold it to spray washer fluid.
NOTE:
With the wiper lever in the OFF or INT
position, the wipers will operate continuously
until the lever is released.
If the washer does not work, inspect the fluid level. If it's normal, consult an Authorized Mazda Dealer.
