Manual Transmission Operation

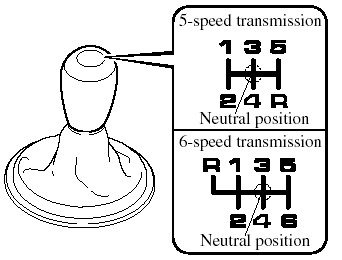

Manual Transmission Shift Pattern


Manual Transmission Shift Pattern

The vehicle is equipped with either a 5- speed or 6-speed manual transmission.

The shift pattern for each is shown above.

Depress the clutch pedal all the way down while shifting; then release it slowly.

(5-speed transmission).

A safety feature prevents accidental shifting from 5 to R (reverse). The shift lever must be put in neutral before being shifted to R.

(6-speed transmission).


(6-speed transmission).

Vehicles with 6-speed transmission are equipped with a device to prevent shifting to R (reverse) by mistake. Push the shift lever downward and shift to R.

WARNING:
Do not use sudden engine braking on slippery road surfaces or at high speeds:
Shifting down while driving on wet, snowy, or frozen roads, or while driving at high speeds causes sudden engine braking, which is dangerous.

The sudden change in tire speed could cause the tires to skid. This could lead to loss of vehicle control and an accident.

Be sure to leave the shift lever in 1 or R position and set the parking brake when leaving the vehicle unattended: Otherwise the vehicle could move and cause an accident.

CAUTION:
except when shifting gears. Also, Keep your foot off the clutch pedal
except when shifting gears. Also, do not use the clutch to hold the vehicle on an upgrade. Riding the clutch will cause needless clutch wear and damage.

force to the gear lever when Do not apply any excessive lateral
force to the gear lever when changing from 5th to 4th gear.

This could lead to the accidental selection of 2nd gear, which can result in damage to the
transmission.

complete stop before shifting to R. Make sure the vehicle comes to a
complete stop before shifting to R.

Shifting to R while the vehicle is still moving may damage the transmission.

NOTE:
If shifting to R is difficult, shift back into neutral, release the clutch pedal, and try again.

Recommendations for Shifting

Upshifting

For normal acceleration, we recommend


For normal acceleration, we recommend these shift points.

For cruising


For cruising

Downshifting

When you must slow down in heavy traffic or on a steep upgrade, downshift before the engine starts to overwork. This reduces the chance of stalling and gives better acceleration when you need more speed.

On a steep downgrade, downshifting helps maintain safe speed and prolongs brake life.
