Keyless Entry System (with Retractable Type Key)

This system remotely locks and unlocks the doors, and opens the power windows.

It can also help you signal for attention.

Press the buttons slowly and carefully.

CAUTION:
To avoid damage to the transmitter, do not:
Get the transmitter wet. Drop the transmitter.


Disassemble the transmitter. Get the transmitter wet.


Expose the transmitter to any kind Disassemble the transmitter.


of magnetic field. Expose the transmitter to any kind
of magnetic field.

temperatures on places such as Expose the transmitter to high
temperatures on places such as the dashboard or hood, under direct sunlight.

NOTE:
- The keyless entry system is designed to operate up to about 2.5 m (8 ft) from the center of the vehicle, but this may vary due to local conditions.

- The system does not operate when the key in the ignition switch.

- Doors can be locked by pressing the lock button while a door is open. However, the hazard warning lights will not flash and the horn will not sound.

- If the transmitter does not operate when pressing a button or the operation range becomes too small, the battery may be dead. To install a new battery, refer to Maintenance .

- Additional transmitters can be obtained at an Authorized Mazda Dealer. Up to 3 transmitters can be used with the keyless entry system per vehicle. Bring all transmitters to an Authorized Mazda Dealer when additional transmitters are required.

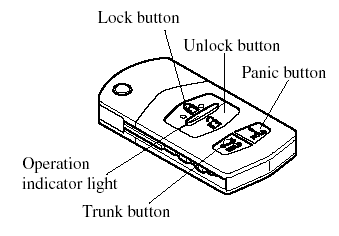

Transmitter

NOTE:


NOTE:
The unlock button can be used to open the power windows. Refer to Opening the Power Windows from Outside .

The operation indicator light flashes when the buttons are pressed.

Lock button

To lock the doors, press the lock button.

To confirm that both doors have been locked, press the lock button again within 5 seconds. If they are closed and locked, the horn will sound.

NOTE:
- Pressing the transmitter lock button to lock the doors while any door is open does not sound the horn.

- (Without theft-deterrent system).

The hazard warning lights will flash once to indicate that both doors are locked.

- (With theft-deterrent system).

The hazard warning lights only flash when the theft deterrent system is armed.

The hazard warning lights do not flash if both the doors are locked before the theftdeterrent system is properly armed.

Refer to the theft-deterrent system .

NOTE:
- Both doors cannot be locked when the key is in the ignition switch.

- Confirm that both doors are locked visually or audibly by use of the double click.

Unlock button

To unlock the driver's door, press the unlock button.

To unlock both doors, press the unlock button again within 3 seconds.

NOTE:
(Without theft-deterrent system).

The hazard warning lights will flash twice to indicate that both doors are unlocked.

(With theft-deterrent system).

The hazard warning lights only flash when the theft deterrent system is turned off.

The hazard warning lights do not flash unless the theft deterrent system has been properly turned off.

Refer to the theft-deterrent system .

NOTE:
Auto re-lock function.

After unlocking with the transmitter, both doors will automatically lock if one of the doors is not opened within about 30 seconds.

Trunk button

To open the trunk, press the trunk button for more than 1 second.

NOTE:
- (With power retractable hardtop).

The trunk lid can only be opened when the power retractable hardtop is fully opened/ closed. Open/close the power retractable hardtop completely before opening the trunk lid.

- The trunk button is disabled when the trunk lid release lock-out button inside the trunk is in the OFF position. Refer to Remote Trunk Lid Release Lock-Out .

Panic button

If you witness from a distance someone attempting to break into or damage your vehicle, pressing the panic button will activate the vehicle's alarm.

NOTE:
The panic button will work whether any door or the trunk lid is open or closed.

Turning on the alarm

Pressing the panic button for 1 second or more will trigger the alarm for about 2 minutes and 30 seconds, and the following will occur:
- The horn sounds intermittently.

- The hazard warning lights flash.

Turning off the alarm

Press any button on the transmitter.

Transmitter Maintenance

If the buttons on the transmitter are inoperable and the operation indicator light does not flash, the battery may be dead.

Replace with a new battery before the transmitter becomes unusable.

CAUTION:
pole ( ) facing down. Battery Install the battery with the positive
pole ( ) facing down. Battery leakage could occur if it is not installed correctly.

careful not to bend the electrical When replacing the battery, be
careful not to bend the electrical terminals or get oil on them. Also be careful not to get dirt in the transmitter as it could be damaged.

the battery is not correctly There is the danger of explosion if
the battery is not correctly replaced.

battery (CR1620 or equivalent). Replace only with the same type
battery (CR1620 or equivalent).

according to the following Dispose of used batteries
according to the following instructions.

terminals of the battery using Insulate the plus and minus
terminals of the battery using cellophane or equivalent tape.

Never throw the battery into Never disassemble.


fire and/or water. Never throw the battery into
fire and/or water.

Replacing the transmitter battery Never deform or crush.


Replacing the transmitter battery

1. Unfold the key .

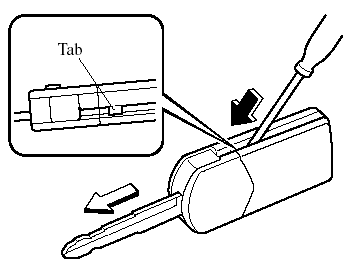

2. Insert a screwdriver into the slot and


2. Insert a screwdriver into the slot and push the tab to remove the key from the transmitter.

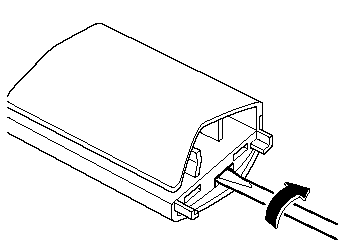

3. Insert a screwdriver into the slot and


3. Insert a screwdriver into the slot and gently pry open the transmitter.

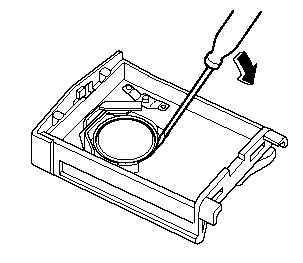

4. Remove the battery.


4. Remove the battery.

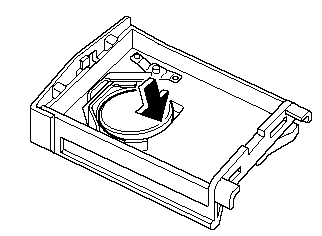

5. Put in the new battery (CR1620 or


5. Put in the new battery (CR1620 or equivalent) with the positive pole ( facing down.

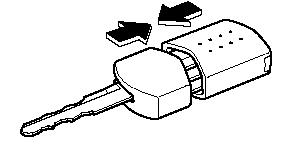

6. Align the front and back covers and


6. Align the front and back covers and snap the transmitter shut.

7. Align the key with the transmitter as shown in the figure, and insert the key until a click sound is heard.

CAUTION:
Insert the key into the transmitter securely until a click sound is heard.

If it is not inserted securely, it could detach from the transmitter.

Service

If you have a problem with the keyless entry system, consult an Authorized Mazda Dealer.

If your transmitter is lost or stolen, bring all remaining transmitters to an Authorized Mazda Dealer as soon as possible for a replacement and to make the lost or stolen transmitter inoperative.

CAUTION:
Radio equipment like this is governed by laws in the United States.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

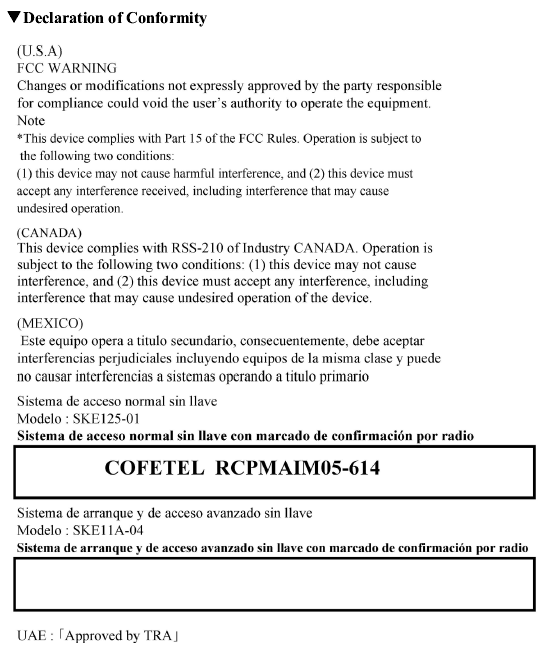

Declaration of Conformity
